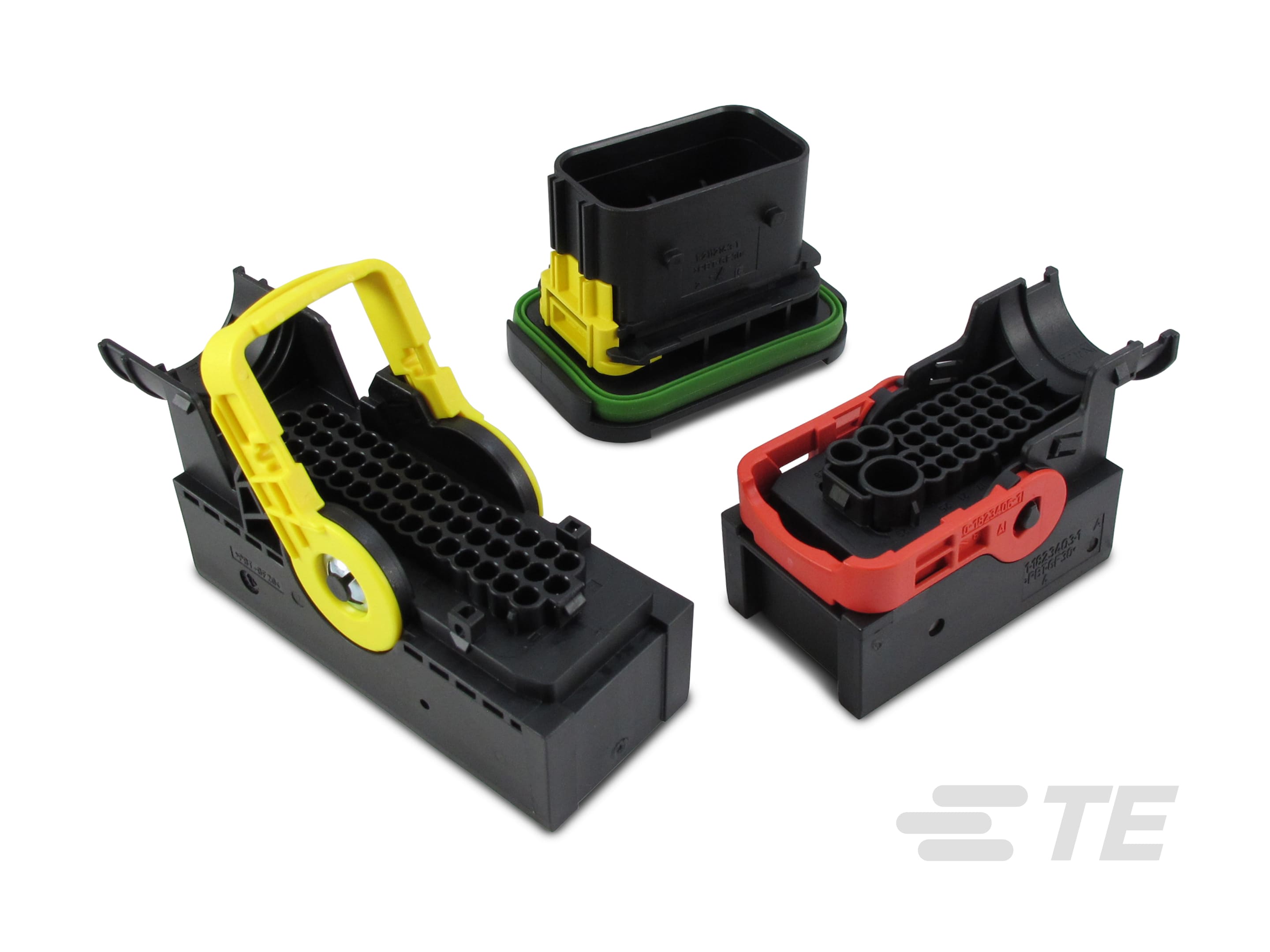

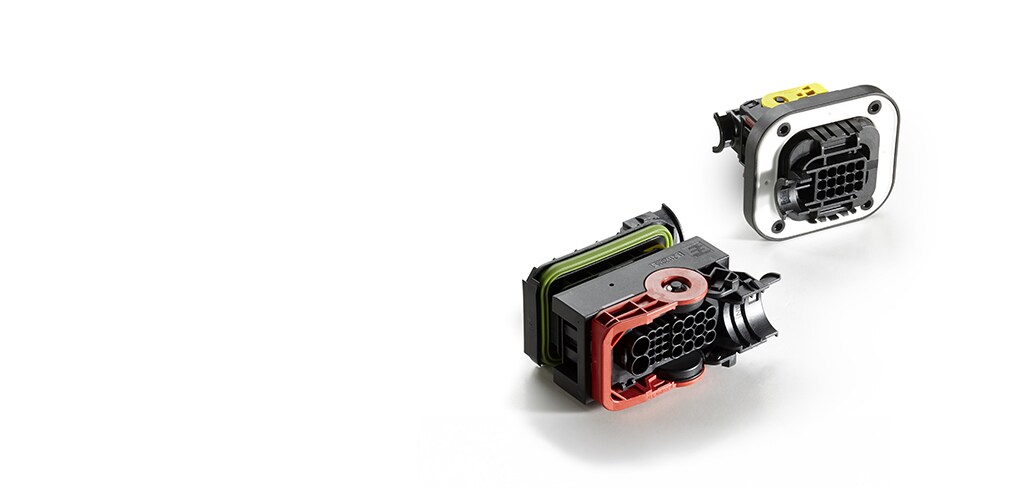

LEAVYSEAL Connector Housings

请查看产品文档或联系我们以了解最新的机构审批信息。

• 混合型连接器  否, 是

• 连接器形状  矩形

• 连接器和壳体类型  公端子护套, 插头, 母端, 母端子护套

• 连接器系统  线到板, 线到线, 线到设备, 线到面板

• 可密封  否, 是

• 主要锁定特性  外壳集成, 无尖刃主体, 端子上, 触点固定器, 锁定枪

• 连接器和端子端接到  电线和电缆

• 空白孔位  0, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 27, 28, 29, 30, 31, 32, 34, 36, 37, 38, 39, 40, 41, 43, 44, 45, 46, 47, 49, 50, 51, 52, 53, 54, 55, 56, 57, 59, 60, 61, 62, 63, 64, 65, 66, 67, 69, 70, 71, 72, 73, 74, 75, 8, 9

• 位数  15, 18, 21, 22, 25, 26, 29, 31, 39, 46, 48, 58, 62, 66, 76, 92, 95, 104

• 行数  1, 2, 3, 4, 6

• 工作电压 (VDC) 12, 24, 28, 30, 32, 36, 42, 60

• 工作电压 (VAC) 42, 60

• 标称电压架构 (V) 12, 24, 28, 36, 42, 48, 80, 90

• 出线角度  180°, 75°, 90°

• 主要产品颜色  土黄色, 淡棕色, 淡蓝色, 灰色, 紫色, 绿色, 蓝色, 褐色, 酒红紫, 黑色

• 连接器和键控代码  A, B, C, D, E, F, G, H, I

• 端子类型  公端, 插座, 母端

• 端子大小  .64mm, 1.2mm, 1.5K, 1.5mm, 1.6mm, 2.8mm, 5.8mm, 6.3mm, AMP MCP 2.8 毫米

• 对接公端宽度 (mm) .64, 1.2, 1.5, 1.6, 2.8, 5.8, 6.3

• 对接公端宽度 (in) .025, .047, .059, .062, .063, .11, .228, .248, .25

• 端子额定电流（最大值） (A) 7, 10, 20, 23, 25, 29, 30, 32, 40, 45, 50

• 接合对准  带有

• 端子位置保证  否, 是

• 接合对准类型  极化, 极化肋, 极性定位槽, 键控

• 应力消除  不带, 带有

• 连接器安装类型  电缆安装（自由悬挂）, 面板安装

• 外壳材料  PA GF, PBT GF, PBT GF15, PBT GF20, PBT GF30

• 中心线（间距） (mm) 2.5, 3, 3.5, 4, 4.6, 5, 5.5, 6, 9

• 中心线（间距） (in) .098, .118, .138, .157, .18, .181, .196, .197, .2, .21, .216, .236, .24, .354, .4

• 产品宽度 (mm) 32.4, 37, 37.3, 37.9, 40, 43.4, 43.5, 43.7, 44, 44.15, 45.5, 45.8, 46, 46.1, 47.1, 48.7, 50, 58.4, 63.2, 70.7

• 兼容的绝缘直径范围 (mm) 1.4 – 2.16, 2.2 – 3, 3.4 – 4.32

• 产品宽度 (mm) 32.4, 37, 37.3, 37.9, 40, 43.4, 43.5, 43.7, 44, 44.15, 45.5, 45.8, 46, 46.1, 47.1, 48.7, 50, 58.4, 63.2, 70.7

• 产品宽度 (in) 1.27, 1.46, 1.47, 1.49, 1.57, 1.7, 1.713, 1.72, 1.73, 1.738, 1.791, 1.8, 1.81, 1.811, 1.814, 1.85, 1.854, 1.91, 1.96, 2.299, 2.48, 2.783

• 产品长度 (mm) 48.4, 57.2, 57.8, 59.2, 59.5, 66.6, 69.2, 69.7, 71.5, 76.5, 85.2, 92, 92.5, 97.8, 104, 112.9, 113.2, 113.25, 115.4, 120.5, 122, 124.8, 125, 135.8

• 行间距 (mm) 1.5, 2.54, 2.95, 3, 3.5, 4, 4.2, 4.5, 4.95, 5, 5.5, 6, 6.3, 6.85, 8, 9

• 兼容的绝缘直径范围 (mm) 1.4 – 2.16, 2.2 – 3, 3.4 – 4.32

• 连接器高度 (mm) 36.4, 37.3, 37.9, 38.6, 41.7, 42, 42.5, 43.7, 44, 45.8, 45.93, 46, 49, 50.2, 51.5, 55.3, 57, 62.7, 66.7, 67, 70.7, 70.8, 80

• 线径 (AWG) 13, 16 – 12, 20 – 13, 22 – 13

• 连接器高度 (mm) 36.4, 37.3, 37.9, 38.6, 41.7, 42, 42.5, 43.7, 44, 45.8, 45.93, 46, 49, 50.2, 51.5, 55.3, 57, 62.7, 66.7, 67, 70.7, 70.8, 80

• 连接器高度 (in) 1.433, 1.47, 1.49, 1.492, 1.52, 1.64, 1.65, 1.67, 1.72, 1.73, 1.732, 1.803, 1.808, 1.81, 1.94, 1.976, 2.028, 2.24, 2.47, 2.62, 2.78, 2.79, 3.149

• 行间距 (mm) 1.5, 2.54, 2.95, 3, 3.5, 4, 4.2, 4.5, 4.95, 5, 5.5, 6, 6.3, 6.85, 8, 9

• 行间距 (in) .059, .1, .116, .118, .138, .157, .165, .177, .194, .196, .216, .217, .236, .248, .27, .315, .354

• 线径 (mm²) .35 – 2.5, .35 – 1.5, .5 – .25, .5 – 2.5, 1.5 – 2.5, 2.5, 4 – 6

• 产品长度 (mm) 48.4, 57.2, 57.8, 59.2, 59.5, 66.6, 69.2, 69.7, 71.5, 76.5, 85.2, 92, 92.5, 97.8, 104, 112.9, 113.2, 113.25, 115.4, 120.5, 122, 124.8, 125, 135.8

• 产品长度 (in) 1.9, 2.25, 2.27, 2.33, 2.622, 2.72, 2.724, 2.74, 2.81, 3.01, 3.35, 3.354, 3.62, 3.64, 3.85, 4.095, 4.44, 4.45, 4.459, 4.543, 4.74, 4.744, 4.8, 4.91, 4.921, 5.346

• 工作温度（最大值） (°C) 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 140

• 工作温度（最大值） (°F) 125, 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 284

• 工组温度范围 (°C) -40 – 125, -40 – 140, -40 – 120, -30 – 120

• 工组温度范围 (°F) -40 – 257, -40 – 284, -40 – 248, -22 – 248

• 电路应用  Signal, 电源, 电源和信号

• UL 阻燃性等级  UL 94HB, UL 94V-0

• IP 等级  IP67, IP68, IP69K, IP6K9K, IPX7, IPX9K

• 与机构/标准产品兼容  LV214, USCAR-2

• 封装方法  Box, Carton, Tray, 包装, 容器, 批量, 标准

• 封装数量  1, 22, 44, 54, 64, 72, 80, 81, 84, 96, 108, 117, 126, 150, 159, 160, 180, 196, 200, 270, 285, 440

• 可维修  否, 是

• 能够保证连接器位置  否, 是
