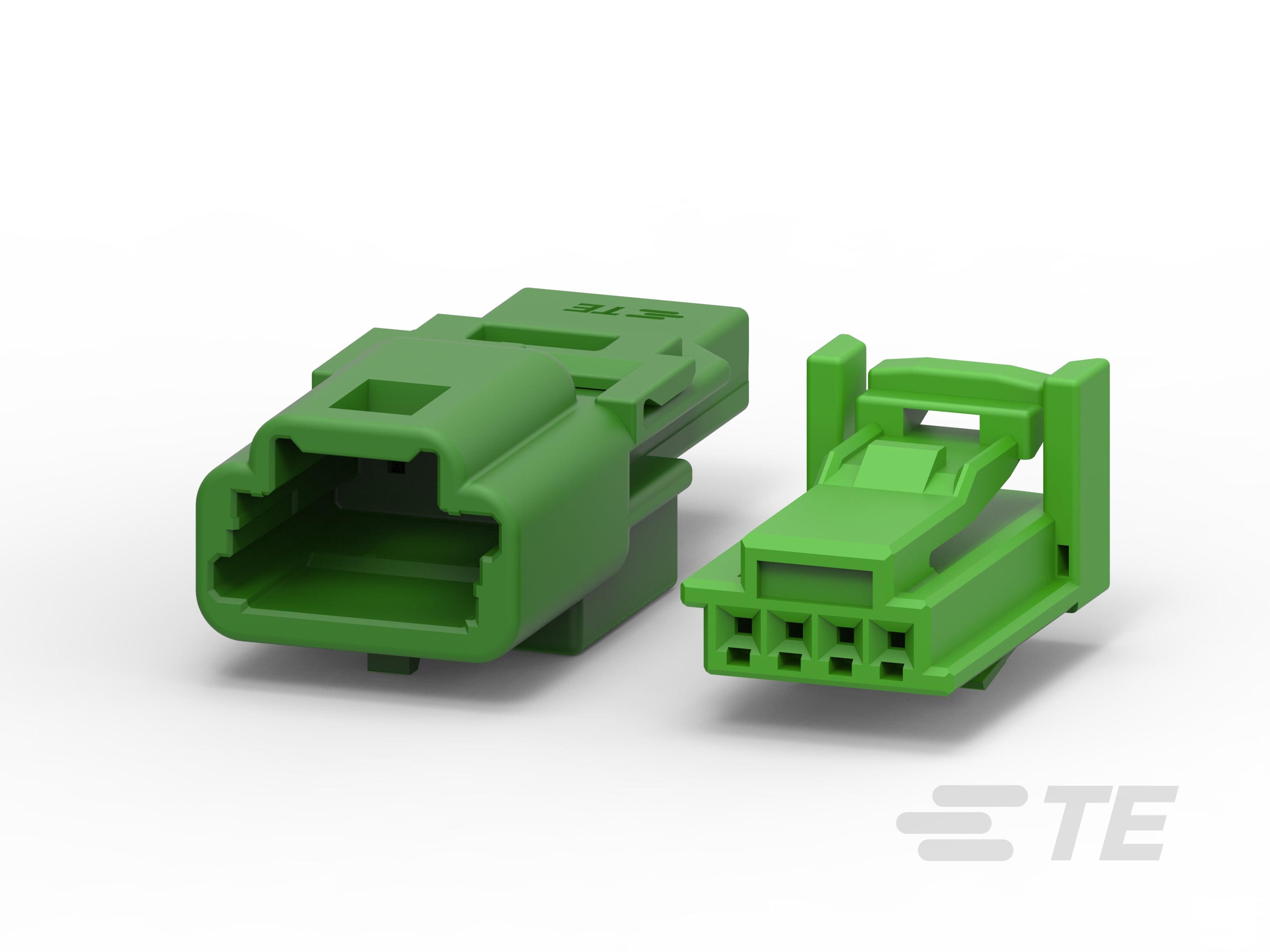

TH/.025 连接器系统，壳体

请查看产品文档或联系我们以了解最新的机构审批信息。

• 混合型连接器  否, 是

• 连接器形状  矩形

• 连接器和壳体类型  公端子护套, 母端子护套

• 连接器系统  线到板, 线到线, 线到设备

• 可密封  否, 是

• 主要锁定特性  外壳集成, 端子上, 锁定枪

• 连接器和端子端接到  电线和电缆

• 空白孔位  13, 16, 29, 3, 32, 37, 38, 40, 42, 5, 7

• 位数  2, 3, 4, 6, 7, 8, 10, 12, 14, 16, 20, 24, 25, 26, 28, 30, 31, 32, 33, 34, 35, 40, 41, 44, 60, 102, 126

• 行数  1, 2, 3, 4, 5, 6, 9

• 工作电压 (VDC) 12, 13, 14

• 工作电压 (VAC) 120

• 标称电压架构 (V) 12, 13, 14

• 出线角度  180°, 90°

• 主要产品颜色  土黄色, 灰色, 紫色, 红色, 绿色, 蓝色, 褐色, 黑色

• 连接器和键控代码  1, 2, 3, 4, 6, 7, B, D, 中性

• 端子类型  公端, 母端

• 端子大小  .63mm, .64mm, 1.5mm, 1mm, 2.3mm, 2.8mm, 6.35mm

• 对接公端宽度 (mm) .63, .64, 1, 2.3, 2.8

• 对接公端宽度 (in) .02, .025, .04, .09, .11

• 接合插针直径  .64 mm [ .02 in ]

• 端子额定电流（最大值） (A) 4, 7.5

• 接合对准  带有

• 端子位置保证  否, 是

• 接合对准类型  极化, 极性定位槽, 键控

• 应力消除  不带

• 连接器安装类型  电缆安装（自由悬挂）

• 外壳材料  PA GF, PBT, PBT GF, PBT GF15

• 中心线（间距） (mm) 2, 2.2, 2.5, 2.54, 2.65, 2.8, 3, 3.2, 3.29, 3.55, 3.7, 3.8, 4, 5, 12.9

• 中心线（间距） (in) .07, .08, .086, .087, .09, .098, .1, .11, .12, .126, .129, .13, .14, .15, .157, .19, .508, .87

• 产品宽度 (mm) 8.6, 9.5, 11, 11.8, 12.6, 13, 13.5, 14, 14.2, 15.4, 15.8, 18.6, 19, 19.8, 20.9, 21, 21.8, 22, 23, 24, 24.4, 24.6, 26.8, 27.4, 27.7, 28.6, 29, 31.7, 31.8, 33, 33.4, 33.9, 35, 36, 36.2, 36.5, 37.4, 39.2, 39.3, 40.6, 46.2, 46.7

• 产品宽度 (in) .339, .374, .433, .465, .496, .51, .531, .551, .559, .606, .62, .622, .732, .748, .75, .78, .82, .826, .827, .828, .83, .858, .86, .87, .9, .906, .944, .96, 1.055, 1.079, 1.09, 1.126, 1.142, 1.248, 1.25, 1.252, 1.3, 1.315, 1.33, 1.335, 1.37, 1.41, 1.42, 1.43, 1.472, 1.54, 1.598, 1.819, 1.84, 5.12

• 连接器高度 (mm) 5.45, 8.8, 9, 9.2, 10.05, 10.5, 10.7, 11, 11.35, 11.75, 11.81, 12, 12.15, 14.7, 15.1, 15.3, 15.4, 15.8, 17.8, 17.9, 18.6, 19, 19.8, 20, 20.9, 21, 22, 22.1, 23, 24.5, 30.8, 40.9, 41.6, 45.4, 51.6

• 连接器高度 (in) .215, .35, .354, .362, .37, .396, .413, .421, .433, .447, .463, .465, .472, .478, .57, .579, .59, .594, .6, .602, .62, .622, .7, .701, .732, .748, .779, .787, .82, .823, .827, .83, .86, .87, .9, .906, .965, 1.21, 1.61, 1.64, 1.78, 2.03

• 行间距 (mm) 2, 2.5, 2.54, 2.9, 3, 3.2, 3.3, 3.5, 3.8, 3.9, 4, 4.2, 4.24, 4.4, 5, 5.5, 5.6, 5.75, 5.9, 6.3, 7.1, 8.6, 8.8, 11.75

• 行间距 (in) .07, .098, .1, .11, .114, .118, .12, .125, .129, .14, .149, .15, .157, .165, .167, .173, .19, .216, .22, .226, .232, .248, .279, .33, .346, .463

• 产品长度 (mm) 11.8, 13, 14, 14.54, 15.4, 17.4, 18.5, 18.6, 19, 19.3, 19.8, 20, 21, 21.42, 21.8, 22, 23, 24.4, 24.6, 26.3, 26.6, 26.8, 27.2, 28, 28.6, 28.8, 29, 30.6, 31.8, 33, 33.9, 35.2, 37.4, 37.6, 39.3, 40.6, 46.2, 46.36, 60.45, 67.65, 70.5, 113.5, 113.6

• 产品长度 (in) .465, .512, .551, .572, .606, .685, .728, .732, .748, .76, .779, .82, .827, .83, .843, .858, .866, .87, .906, .95, .96, .97, 1.03, 1.04, 1.05, 1.1, 1.12, 1.13, 1.14, 1.2, 1.252, 1.3, 1.33, 1.335, 1.38, 1.386, 1.47, 1.48, 1.54, 1.59, 1.81, 1.819, 1.82, 2.37, 2.66, 2.77, 4.46, 4.47

• 工作温度（最大值） (°C) 70, 75, 80, 85, 90, 100, 105, 110, 120, 140

• 工作温度（最大值） (°F) 158, 167, 176, 185, 194, 212, 221, 230, 248, 284

• 工组温度范围 (°C) -30 – 105, -30 – 80, -40 – 140, -30 – 100, -40 – 80, -40 – 85, -40 – 100, -40 – 105, -40 – 120

• 工组温度范围 (°F) -22 – 176, -30 – 221, -22 – 221, -40 – 284, -40 – 221, -40 – 185, -40 – 212, -40 – 176, -22 – 212, -40 – 248

• 电路应用  Signal, 电源和信号

• UL 阻燃性等级  UL 94HB, 否

• 封装方法  Bag, Box, Tray, 包装, 盒和纸箱, 袋和盒

• 封装数量  16, 24, 35, 50, 54, 63, 100, 200, 300, 400, 600, 700, 800, 819, 900, 1100, 1200

• 可维修  否, 是

• 能够保证连接器位置  否
