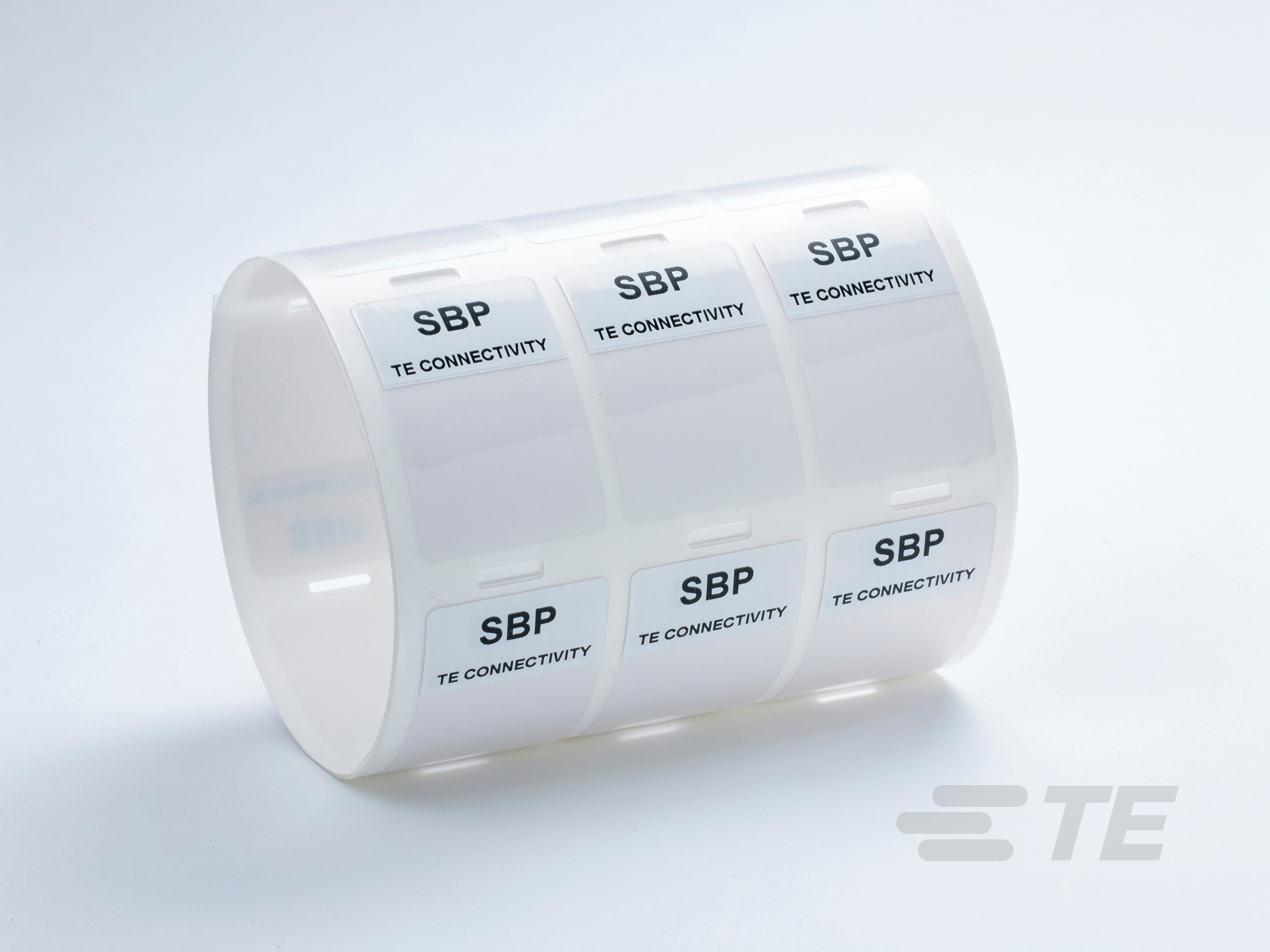

Self Laminating Vinyl Labels, SBP

请查看产品文档或联系我们以了解最新的机构审批信息。

• 标签类型  导线和电缆标识, 自层叠

• 可打印高度 (mm) 12.7, 19.1, 25.4, 38.1, 6.4, 8.5, 9.5

• 可打印高度 (in) .25, .33, .375, .5, .75, .752, 1, 1.5

• 主要产品颜色  橙色, 白色, 红色, 黄色

• 主要产品材料  透明乙烯

• 产品宽度 (mm) 12.7, 19.1, 20.3, 25.4, 48.3, 50.8

• 产品宽度 (in) .5, .75, .8, 1, 1.9, 2

• 产品高度 (mm) 19.1, 23.9, 25.4, 36.5, 38.1, 57.2, 81, 95.3, 101.6, 150.9, 188.9

• 产品高度 (in) .75, .94, 1, 1.437, 1.5, 2.25, 3.19, 3.75, 4, 5.94, 7.437

• 兼容电缆直径范围 (mm) 2 – 4.1, 2.7 – 5.4, 3 – 4.6, 4 – 7.6, 4 – 8.1, 6.1 – 12.1, 6.1 – 19.7, 8.1 – 22.2, 8.1 – 24.3, 12.1 – 35.9, 12.1 – 36, 12.1 – 48

• 兼容电缆直径范围 (in) .08 – .161, .105 – .213, .119 – .18, .159 – .298, .159 – .318, .239 – .477, .239 – .777, .318 – .875, .318 – .955, .477 – 1.413, .477 – 1.416, .477 – 1.89

• 工作温度范围  -40 – 110 °C [ -40 – 230 °F ]

• 标签类型  自层叠

• 标签卷长度 (m) 21.1, 26.3, 31, 31.8, 33.35, 33.86, 35.16, 42.2, 48.82, 50.8, 52.75, 52.93, 55.58, 55.62, 62, 63.3, 63.5, 65.1, 70.33, 71.5, 79.4, 79.5, 83.37, 84.4, 84.66, 97.65, 111.12, 111.16, 111.25, 127, 135

• 标签卷长度 (ft) 69.22, 86.28, 101.7, 104.33, 109.41, 111.1, 115.35, 138.45, 160.17, 166.66, 173.06, 173.65, 173.66, 182.34, 182.48, 203.41, 207.67, 208.33, 213.58, 230.74, 234.58, 260.49, 260.82, 273.52, 276.9, 277.75, 320.37, 364.56, 364.69, 364.99, 416.66, 442.91

• 标签表面涂层  光泽

• 标签厚度 (Micron) 100

• 打印机类型  热转印

• 横跨标签数  1, 12, 2, 3, 4, 5

• 与机构/标准产品兼容  UL

• 封装方法  Roll

• 封装数量  500, 1000, 1500, 2500, 5000, 10000

• 标签粘合剂类型  永久性丙烯酸, 永久性丙烯酸粘合剂
