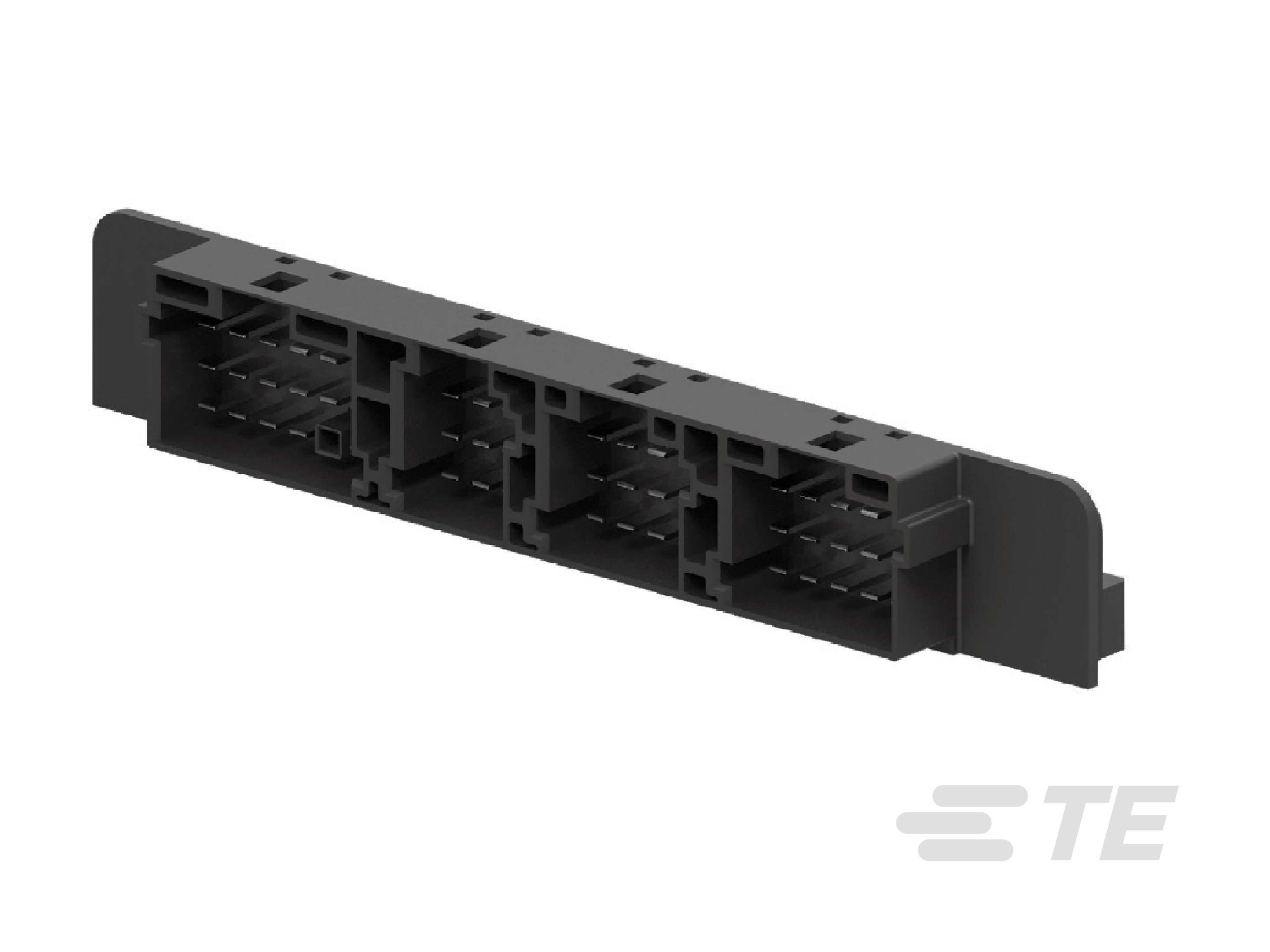

High Pin Count Header

请查看产品文档或联系我们以了解最新的机构审批信息。

• 连接器形状  矩形

• 连接器系统  线到板

• 接头类型  全部带罩

• 可密封  否, 是

• 连接器和端子端接到  印刷电路板

• PCB 连接器组件类型  PCB 安装接头

• 混合板端连接器  否, 是

• 信号位置数量  29, 40, 48, 50, 54, 55, 56, 58, 60, 64, 68, 69, 70, 72, 76, 80, 94, 96, 98, 108, 116, 122, 126, 132, 135, 160, 167, 200

• 位数  40, 44, 48, 50, 52, 54, 55, 56, 58, 60, 64, 68, 69, 70, 72, 76, 78, 80, 94, 96, 120, 121, 122, 126, 132, 134, 135, 167, 200

• 行数  1, 2, 3, 4, 7

• PCB 安装方向  垂直, 水平, 直角

• 节数  1, 2, 3, 4, 5, 6

• 工作电压 (VDC) 12

• 标称电压架构 (V) 12

• 额定电压（最大值） (VDC) 12

• 连接器和键控代码  2, 4, 8, A, A-A, A1, AB-Ab, AD-Ad, B, B-B, C, F, RA_Ra, RA_Re, RC_Rc, RE_Re, RI_Ri

• 主要产品颜色  土黄色, 灰色, 白色, 紫色, 紫色, 绿色, 褐色, 黄色, 黑色

• 对接公端厚度 (mm) .4, .6, .63, .64, .8

• 对接公端厚度 (in) .016, .023, .024, .025, .031

• 对接公端宽度 (mm) .5, .63, .64, 1, 1.5, 1.6, 1.77, 1.8, 2.3, 2.5, 2.8, 3, 4.8

• 对接公端宽度 (in) .02, .025, .039, .059, .062, .063, .07, .071, .091, .1, .11, .118, .189

• 端子大小  .5mm, .63mm, .64mm, 1.5mm, 1.6mm, 1.8mm, 1mm, 2.28mm, 2.3mm, 2.8mm, 3mm, 4.8mm

• 端子接触部电镀材料  金, 金 (Au), 银, 银 (Ag), 锡, 锡 (Sn)

• 端子类型  公端, 插针

• PCB 端接方法  表面贴装, 通孔 - 免焊连接, 通孔 - 焊接, 通孔 - 螺钉

• 接合固定类型  锁定接口

• PCB 安装固定类型  安装孔, 导针, 板锁

• 面板安装特性  不带, 带有

• 接合固定  带有

• 连接器安装类型  板安装, 面板安装

• 接合对准  带有

• PCB 安装对准  不带, 带有

• PCB 安装固定  不带, 带有

• 安装孔  不带, 带有

• 中心线（间距） (mm) 1.5, 1.6, 1.75, 1.8, 2, 2.2, 2.5, 2.54, 3, 3.1, 3.2, 3.25, 3.3, 3.5, 3.6, 3.8, 4, 4.1, 4.3, 5, 5.08, 5.8, 6.05, 6.5

• 中心线（间距） (in) .059, .063, .071, .079, .086, .087, .098, .1, .118, .122, .125, .126, .128, .13, .138, .142, .15, .157, .161, .17, .196, .197, .2, .228, .238, .25, .256

• PCB 的外形高度 (mm) 4.42, 7.9, 11.8, 15.5, 17.2, 17.6, 19.9, 20, 20.4, 20.6, 21.9, 22.5, 22.7, 23.4, 23.5, 25, 25.5, 26.35, 27.6, 28.2, 28.5, 31.1, 32.5, 33.8, 35

• PCB 的外形高度 (in) .174, .311, .465, .61, .677, .692, .693, .783, .787, .803, .811, .862, .88, .886, .889, .894, .921, .925, .984, 1.004, 1.037, 1.08, 1.11, 1.12, 1.22, 1.27, 1.33, 1.37

• PCB 厚度（建议） (mm) .5 – 2, .8, 1 – .8, 1.2 – 1.6, 1.6

• PCB 厚度（建议） (in) .02 – .079, .031, .04 – .031, .047 – .063, .063

• 连接器宽度 (mm) 13.4, 15.3, 18.5, 19, 19.5, 20.9, 23, 26.3, 31.8, 33.4, 34.6, 34.8, 35, 35.3, 37.1, 42, 45, 49.4, 56.5, 59, 60.5, 64.8, 68.9, 69.4, 72.5, 79.4, 87.2, 92.4, 93.4, 94.9, 95.8, 103.7, 112.7, 117.8, 131.8, 138.8, 144, 147.4, 147.9, 164.9

• 连接器宽度 (in) .527, .602, .728, .748, .767, .77, .822, .905, 1.03, 1.19, 1.315, 1.362, 1.37, 1.378, 1.39, 1.46, 1.65, 1.772, 1.945, 2.224, 2.323, 2.382, 2.551, 2.713, 2.732, 2.854, 3.126, 3.433, 3.638, 3.677, 3.736, 3.772, 4.083, 4.437, 4.637, 4.638, 5.189, 5.465, 5.669, 5.803, 5.823, 6.492

• 连接器长度 (mm) 112.7, 116.3, 129.7, 137, 141, 144, 16.2, 164.7, 164.9, 172.5, 178, 19.5, 24.47, 25.5, 25.72, 25.8, 27.4, 27.85, 33.4, 33.7, 33.85, 36.85, 41.4, 41.55, 45, 47, 49.4, 56.5, 59, 60.5, 87.2, 89.86, 93.66

• 连接器长度 (in) .638, .767, .963, 1.004, 1.013, 1.016, 1.079, 1.096, 1.315, 1.326, 1.333, 1.358, 1.38, 1.437, 1.45, 1.451, 1.63, 1.636, 1.85, 1.94, 2.25, 2.32, 2.382, 3.43, 3.54, 3.687, 4.43, 4.44, 4.57, 5.1, 5.39, 5.551, 6.484, 6.49, 6.5, 6.791, 7.008

• 工作温度（最大值） (°C) 65, 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 130, 140, 145, 150

• 工作温度（最大值） (°F) 149, 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302

• 工作温度范围 (°C) -40 – 100, -40 – 120, -40 – 130, -30 – 105, -30 – 150, -30 – 85

• 工作温度范围 (°F) -40 – 212, -40 – 248, -40 – 266, -22 – 185, -22 – 221, -22 – 302

• 屏蔽  否, 是

• 电路应用  Signal, 电源和信号

• UL 阻燃性等级  UL 94HB, UL 94V-0, 无

• 保护等级  IP54K

• 封装数量  3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 22, 25, 30, 36, 40, 42, 50, 55, 72

• 封装方法  Box, Carton, Tray, Tube, 零散零件

• 接口编号  1123325, 1123325/26/27/08/29, 1123325/26/28/29, 1123326, 1123328, 1123329, 114-18066-019, 114-18313-001, 1355172-1, 174147, 2069757, 2288274, 2288276, 316372, 353021, 353031, 917992, 963534
