AMPSEAL 16 Hybrid Lever Mounting

AMPSEAL 16 Hybrid Lever Mounting-CAT-H991-M8649

AMP

|

AMPSEAL 16

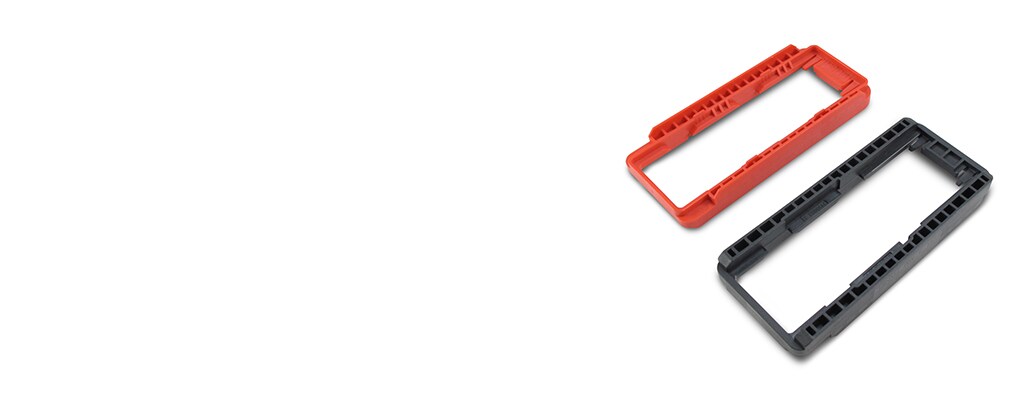

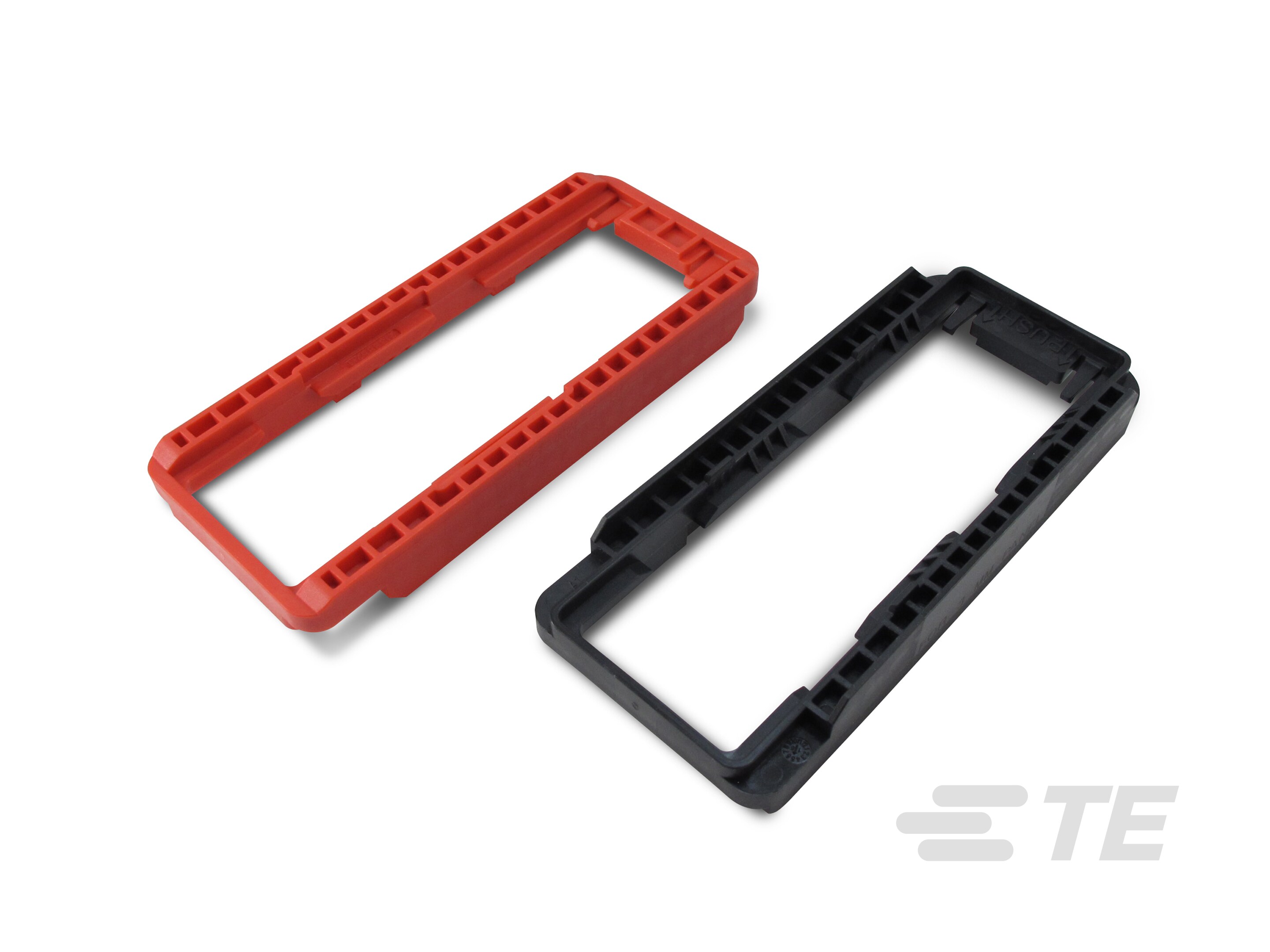

AMPSEAL 16 混合杠杆连接器可以使用安装卡箍固定。卡箍适用于厚度为 3-5 mm 的面板。

产品特性

汽车连接器附件类型: 安装卡箍, 安装卡箍
主要产品材料: PBT GF
工作温度范围(°C): -55 – 125

产品	TE 产品编号	文档	主要产品颜色
MOUNTING CLIP, 5MM PANEL, AMPSEAL 16 HL	2138852-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	红色
MOUNTING CLIP, 4MM PANEL, AMPSEAL 16 HL	2138852-2	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	黄色
MOUNTING CLIP, 3MM PANEL, AMPSEAL 16 HL	2138852-3	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	黑色

概述

安装卡箍已使用色码，以便用于不同厚度的面板。

其他 AMPSEAL 16 产品

查看所有 AMPSEAL 16 产品
AMPSEAL 16 连接器专为非公路车辆、重载工业、休闲和农业应用而设计。这些连接器非常可靠、易于使用并且有助于防止湿气和灰尘污染连接。

规格特性

请查看产品文档或联系我们以了解最新的机构审批信息。

产品类型特性

汽车连接器附件类型 安装卡箍, 安装卡箍

主体特性

主要产品材料 PBT GF
主要产品颜色 红色, 黄色, 黑色

使用环境

工作温度范围 -55 – 125 °C [ -67 – 257 °F ]

行业标准

UL 阻燃性等级 UL 94HB, 无
与机构/标准产品兼容 EIA, SAE

包装特性

封装方法 Box, 批量
封装数量 1

其他

可维修 否, 是

参考编号

TE 内部编号 CAT-H991-M8649

相关资料

Brochure

AMPSEAL 16 Hybrid Lever Datasheet (English) TE Connectivity’s AMPSEAL 16 hybrid lever is a sealed connector system that features a lever slide mechanism for mating and a slide in mounting clip. 英语

Flipbook Catalog

Industrial & Commercial Transportation - Terminals and Connectors (English) TE's Industrial & Commercial Transportation Terminals and Connectors flipbook catalog features AMPSEAL, AMPSEAL 16, Circular DIN, DEUTSCH, HDSCS, LEAVYSEAL, and Superseal 1.0 connectors, contacts, tools, and accessories.

Product Specification

AMPSEAL 16 hybrid lever Connector System Product Specifications (English) This specification covers performance, tests and quality requirements for the AMPSEAL 16 hybrid lever connector system.

Application Specification (Connector)

AMPSEAL 16 Hybrid Lever Connector System Application Specifications (English) This specification covers the requirements for application of the AMPSEAL 16 Hybrid Lever Connector System. The connector system includes a plug assembly, cap assembly, mounting clip and wire exit cover.

Test Specifications

AMPSEAL 16 Hybrid Lever Connector System Qualification Test Report (English) This report covers the mechanical, electrical, and environmental sealing performance of the AMPSEAL 16 hybrid ever connector system. Testing was performed at the Winston-Salem Electronic Components Test Laboratory in 2013 and 2014.

Connector Selector

Connector Selector (English) The Connector Selector is a reference guide to TE Connectivity's (TE) Industrial & Commercial Transportation electrical connectors.
