320572

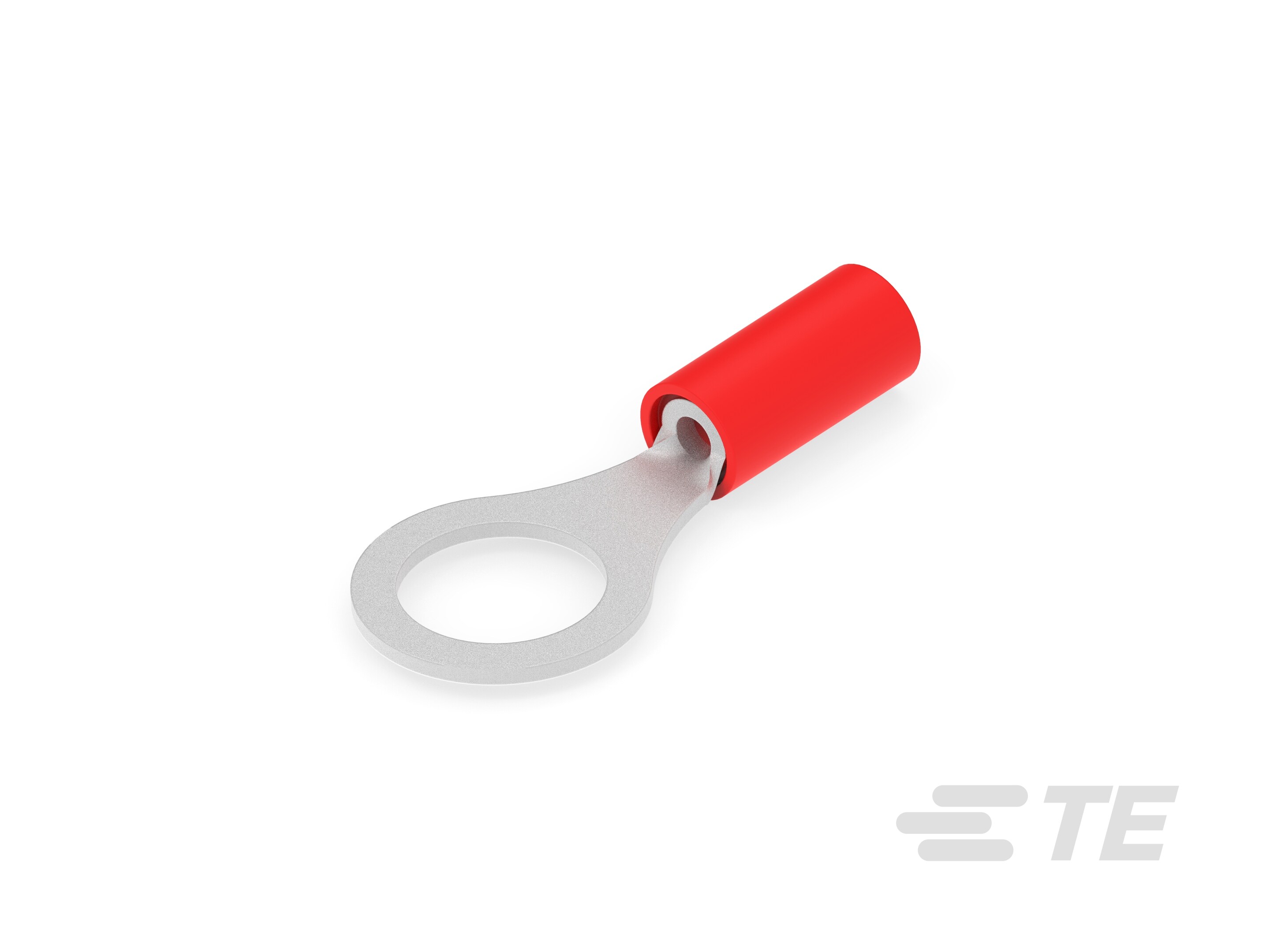

Closed Ring Tongue Terminal, 22 – 16 AWG, 5/16 / M8 Stud, 7.92 mm [.312 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PIDG
320572
Closed Ring Tongue Terminal, 22 – 16 AWG, 5/16 / M8 Stud, 7.92 mm [.312 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PIDG
-
- PIDG
- TE 内部编号 320572
- TE 内部产品描述 PIDG R 22-16COMM 22-18MIL 5/16
- 军用规范： MS25036-104, CLASS 1
- 别名 ID EF5287-000 AMP-0-0320572-0
-
环形端子产品类型 : 闭环舌形端子
-
线径 (AWG): 22 – 16
-
线径 (mm²): .3 – 1.42
-
线径 (CMA): 509 – 3260
-
螺钉尺寸 : 5/16 | M8
