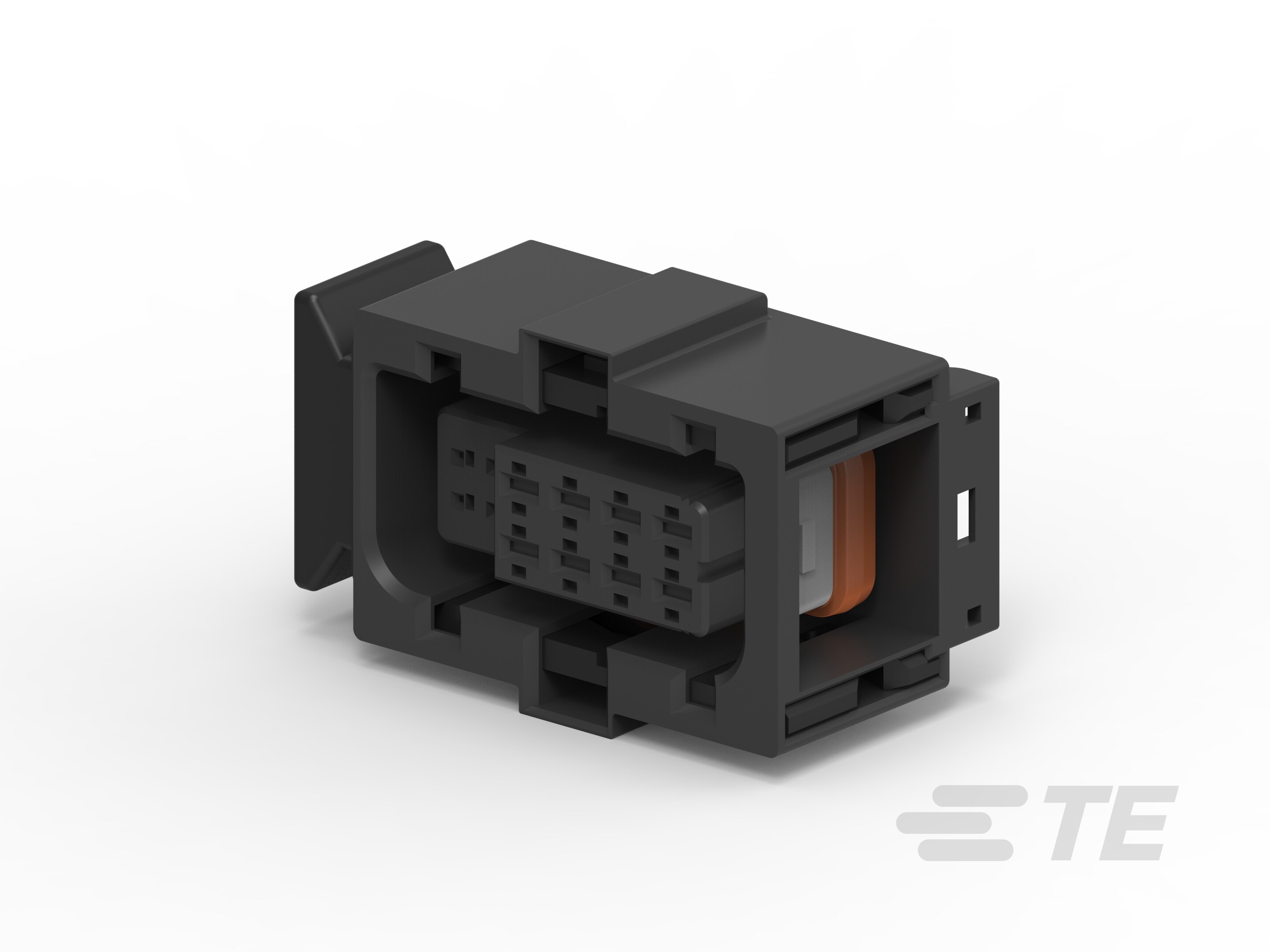

2109220-2
12 V, 12 Position, Automotive Housing for Female Terminals, Wire-to-Board, 4.2 mm / 6 mm [.165 in / .236 in] Centerline, Multilock Connector System
2109220-2
12 V, 12 Position, Automotive Housing for Female Terminals, Wire-to-Board, 4.2 mm / 6 mm [.165 in / .236 in] Centerline, Multilock Connector System
-
- Multilock 连接器系统
- TE 内部编号 2109220-2
- TE 内部产品描述 .64/2.8 HYB 12P SLD PLUG ASM
-
标称电压架构 (V): 12
-
连接器和壳体类型 : 母端子护套
-
位数 : 12
-
可密封 : 是
-
工组温度范围 (°C): -40 – 130 | -40 – 120
-
工组温度范围 (°F): -40 – 248 | -40 – 266
