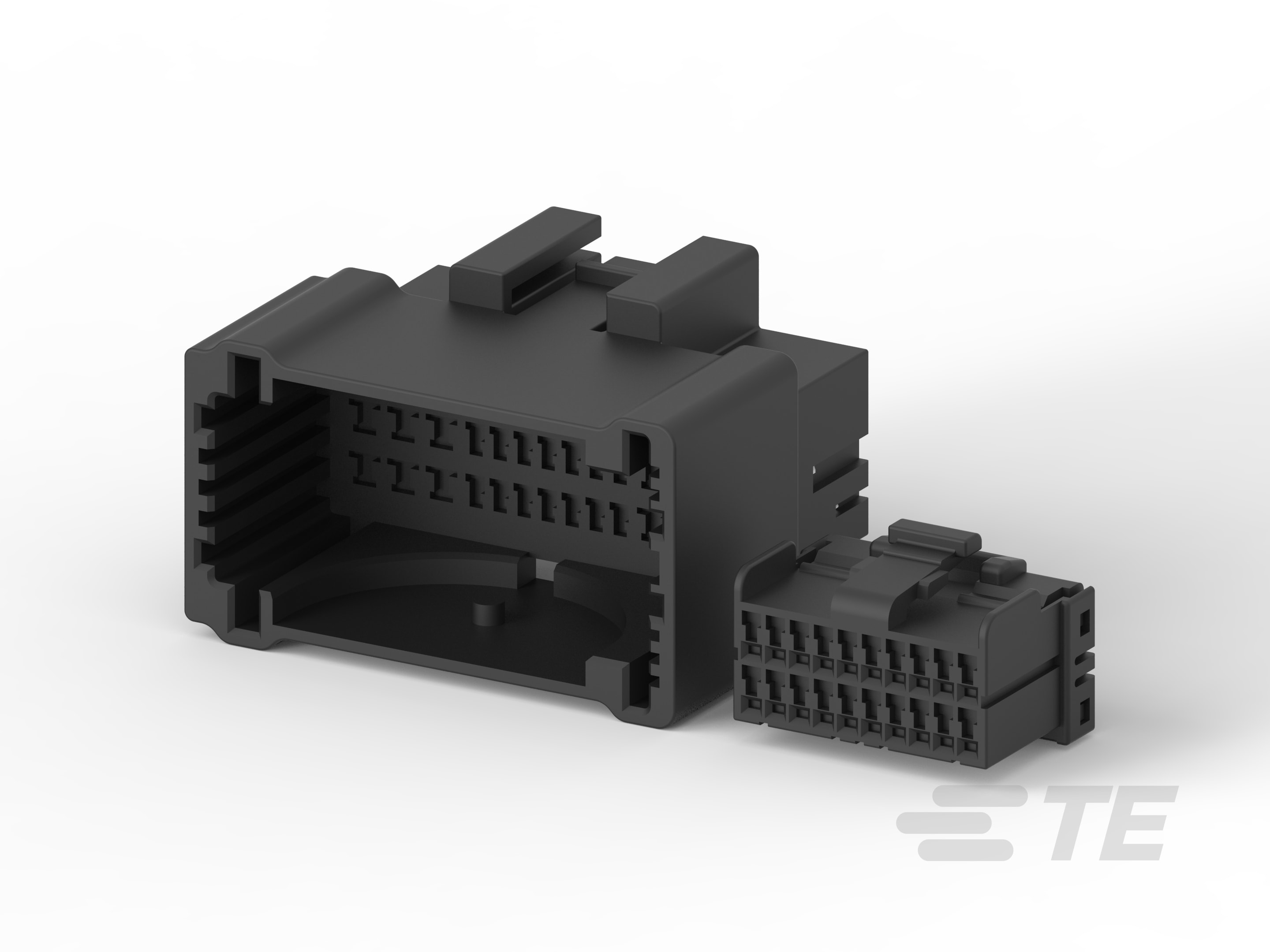

MULTILOCK，连接器壳体

请查看产品文档或联系我们以了解最新的机构审批信息。

• 混合型连接器  否, 是

• 连接器形状  矩形

• 连接器和壳体类型  公端子护套, 母端子护套

• 连接器系统  线到板, 线到线, 线到设备, 线到面板

• 可密封  否, 是

• 主要锁定特性  外壳集成, 端子上, 锁定枪

• 连接器和端子端接到  电线和电缆

• 空白孔位  0

• 位数  2, 3, 4, 7, 8, 10, 11, 12, 13, 14, 15, 16, 18, 20, 22, 24, 25, 26, 30, 32, 33, 34, 36, 38, 39, 40, 42, 45, 49, 50, 51, 56, 76

• 行数  1, 2, 3, 4, 5, 6, 7

• 工作电压 (VDC) 12, 24, 36, 48

• 标称电压架构 (V) 12, 14, 24, 36, 48

• 出线角度  180°, 90°

• 主要产品颜色  土黄色, 淡灰色, 灰色, 白色, 紫色, 红色, 绿色, 蓝色, 褐色, 黄色, 黑色

• 连接器和键控代码  A, B, D, 中性

• 端子类型  公端, 母端

• 端子大小  .63mm, .64mm, .8mm, 1.5mm, 1.64mm, 1.6mm, 1.8mm, 1mm, 2.28mm, 2.3mm, 2.8mm, 3mm, 4.8mm, 5.8mm, 6.35mm, 6.3mm

• 对接公端宽度 (mm) .63, .64, .8, 1, 1.01, 1.1, 1.5, 1.6, 1.7, 1.8, 2.28, 2.3, 2.8, 3, 4.8, 5.8, 6.3, 6.35, 8

• 对接公端宽度 (in) .024, .025, .031, .039, .04, .043, .059, .06, .063, .07, .071, .08, .09, .11, .118, .189, .228, .24, .25, .315

• 端子额定电流（最大值） (A) 7.5, 14, 15, 16, 30, 35, 40

• 接合对准  带有

• 端子位置保证  否, 是

• 接合对准类型  导柱, 极化, 极化公端, 极化肋, 极性定位槽, 键控

• 应力消除  不带

• 连接器安装类型  电缆安装（自由悬挂）, 面板安装

• 外壳材料  PA, PA GF, PBT, PBT GF, PBT GF30

• 中心线（间距） (mm) 2, 2.2, 2.3, 2.5, 2.54, 3, 3.2, 3.4, 3.5, 3.8, 4, 4.2, 4.55, 5, 5.25, 5.5, 5.6, 6, 6.3, 6.5, 6.7, 8.5

• 中心线（间距） (in) .079, .08, .09, .098, .1, .11, .118, .12, .13, .137, .138, .14, .15, .157, .16, .165, .18, .19, .197, .2, .21, .217, .22, .23, .236, .24, .25, .26, .33

• 产品宽度 (mm) 7.8, 8.9, 9.2, 11.6, 13.9, 14, 14.1, 15.2, 16.6, 17.3, 17.4, 17.5, 18.2, 18.6, 18.7, 20, 20.8, 21, 21.6, 22.8, 24, 24.3, 25, 25.8, 26, 26.1, 26.25, 27, 27.2, 27.8, 28, 28.2, 29.1, 30.1, 30.7, 31.4, 32, 32.2, 33.5, 34, 34.95, 35.1, 35.4, 35.5, 37.5, 37.7, 37.8, 38, 39.5, 39.6, 40.5, 41.3, 42, 42.2, 43.9, 45.9, 46.2, 46.9, 48.6, 49.4, 49.7, 69

• 产品宽度 (in) .307, .35, .362, .457, .547, .551, .555, .598, .65, .681, .685, .688, .717, .732, .736, .787, .819, .82, .826, .827, .828, .83, .85, .89, .944, .95, .98, .984, 1.01, 1.02, 1.028, 1.03, 1.06, 1.07, 1.09, 1.1, 1.11, 1.14, 1.18, 1.2, 1.23, 1.236, 1.26, 1.31, 1.33, 1.37, 1.38, 1.39, 1.4, 1.47, 1.48, 1.488, 1.496, 1.55, 1.6, 1.62, 1.65, 1.66, 1.73, 1.807, 1.82, 1.84, 1.91, 1.945, 1.95, 2.71

• 连接器高度 (mm) 7.9, 10, 10.3, 12.7, 13.4, 14, 14.1, 14.2, 15.5, 15.9, 16.5, 16.6, 16.7, 16.9, 17.2, 17.3, 17.6, 18.5, 18.6, 18.8, 18.9, 19.6, 19.7, 19.75, 20, 21, 21.6, 21.9, 22.6, 22.8, 23.8, 24.3, 24.9, 25, 25.7, 26.25, 26.6, 26.65, 27, 27.8, 28, 29.2, 29.3, 29.4, 30, 30.2, 30.4, 30.6, 31.4, 32.6, 32.9, 33, 33.1, 33.3, 33.8, 34, 35.1, 35.5, 36, 37, 37.1, 37.6, 39, 39.7, 40.3, 47.7, 49.9, 51.85

• 连接器高度 (in) .311, .394, .406, .5, .52, .527, .53, .551, .555, .559, .61, .626, .65, .657, .665, .677, .681, .692, .72, .73, .74, .744, .77, .776, .778, .79, .82, .827, .85, .86, .89, .897, .93, .95, .98, .984, 1.01, 1.03, 1.04, 1.05, 1.06, 1.09, 1.1, 1.14, 1.15, 1.18, 1.19, 1.196, 1.2, 1.24, 1.28, 1.29, 1.3, 1.31, 1.33, 1.34, 1.38, 1.39, 1.41, 1.45, 1.46, 1.48, 1.53, 1.56, 1.59, 1.87, 1.96, 2.04

• 行间距 (mm) 2.5, 3, 3.3, 3.35, 3.45, 3.55, 3.75, 4, 4.2, 4.3, 4.5, 5, 5.2, 5.53, 5.6, 5.9, 6, 6.2, 6.3, 6.4, 6.87, 6.9, 7.3, 7.5, 8, 8.6, 8.9, 9.3, 9.4, 10

• 行间距 (in) .098, .11, .118, .12, .13, .135, .14, .15, .157, .16, .165, .177, .19, .196, .197, .2, .204, .205, .21, .22, .23, .232, .236, .24, .248, .25, .27, .28, .295, .315, .338, .35, .37, .39

• 产品长度 (mm) 8, 8.95, 10.4, 11, 13.3, 18.5, 18.6, 19, 19.4, 20.6, 21, 21.6, 22, 22.6, 22.9, 23.6, 25, 25.55, 25.6, 27.4, 28.4, 30, 32.7, 32.75, 34, 35.2, 35.5, 36.1, 36.8, 37, 39.5, 39.6, 40.2, 40.3, 43.1, 43.5, 43.8, 44.4, 44.5, 45, 45.8, 46.1, 46.6, 47.5, 47.6, 49.7, 50.7, 51.5, 52.1, 53.05, 54.5, 54.8, 56, 57.4, 58.1, 59.8, 60.5, 60.75, 64, 67, 67.2, 69.8, 73, 73.5, 74.4, 79.15, 80, 82.4, 87.8, 89, 94

• 产品长度 (in) .315, .352, .409, .433, .523, .728, .732, .748, .763, .81, .82, .826, .85, .866, .88, .9, .93, .98, .984, 1, 1.006, 1.07, 1.118, 1.18, 1.28, 1.29, 1.339, 1.34, 1.38, 1.39, 1.398, 1.42, 1.44, 1.46, 1.55, 1.56, 1.58, 1.59, 1.69, 1.696, 1.7, 1.71, 1.72, 1.75, 1.77, 1.803, 1.81, 1.83, 1.87, 1.95, 1.99, 2.02, 2.05, 2.1, 2.14, 2.15, 2.2, 2.25, 2.28, 2.35, 2.38, 2.39, 2.51, 2.63, 2.64, 2.74, 2.87, 2.89, 2.92, 3.11, 3.14, 3.24, 3.45, 3.5, 3.7

• 工作温度（最大值） (°C) 70, 75, 80, 85, 90, 100, 105, 120, 125, 130, 266

• 工作温度（最大值） (°F) 158, 167, 176, 185, 194, 212, 221, 248, 257, 266

• 工组温度范围 (°C) -40 – 125, -40 – 130, -40 – 80, -40 – 85, -40 – 100, -40 – 105, -40 – 120, -30 – 105

• 工组温度范围 (°F) -40 – 257, -40 – 221, -40 – 266, -40 – 185, -40 – 212, -40 – 176, -40 – 248, -30 – 221, -22 – 221

• 电路应用  Signal, 电源, 电源和信号

• UL 阻燃性等级  UL 94HB, UL 94V-2, 否

• 与机构/标准产品兼容  DIN IEC 512

• 封装方法  Bag, Box, Tray, 包装, 盒和托盘

• 封装数量  1, 24, 25, 27, 30, 32, 36, 40, 42, 45, 48, 50, 54, 63, 65, 70, 72, 75, 84, 100, 108, 110, 120, 150, 192, 200, 240, 250, 300, 330, 390, 400, 500, 512, 576, 600, 700, 900, 1000, 4000

• 可维修  否, 是

• 能够保证连接器位置  否, 是
