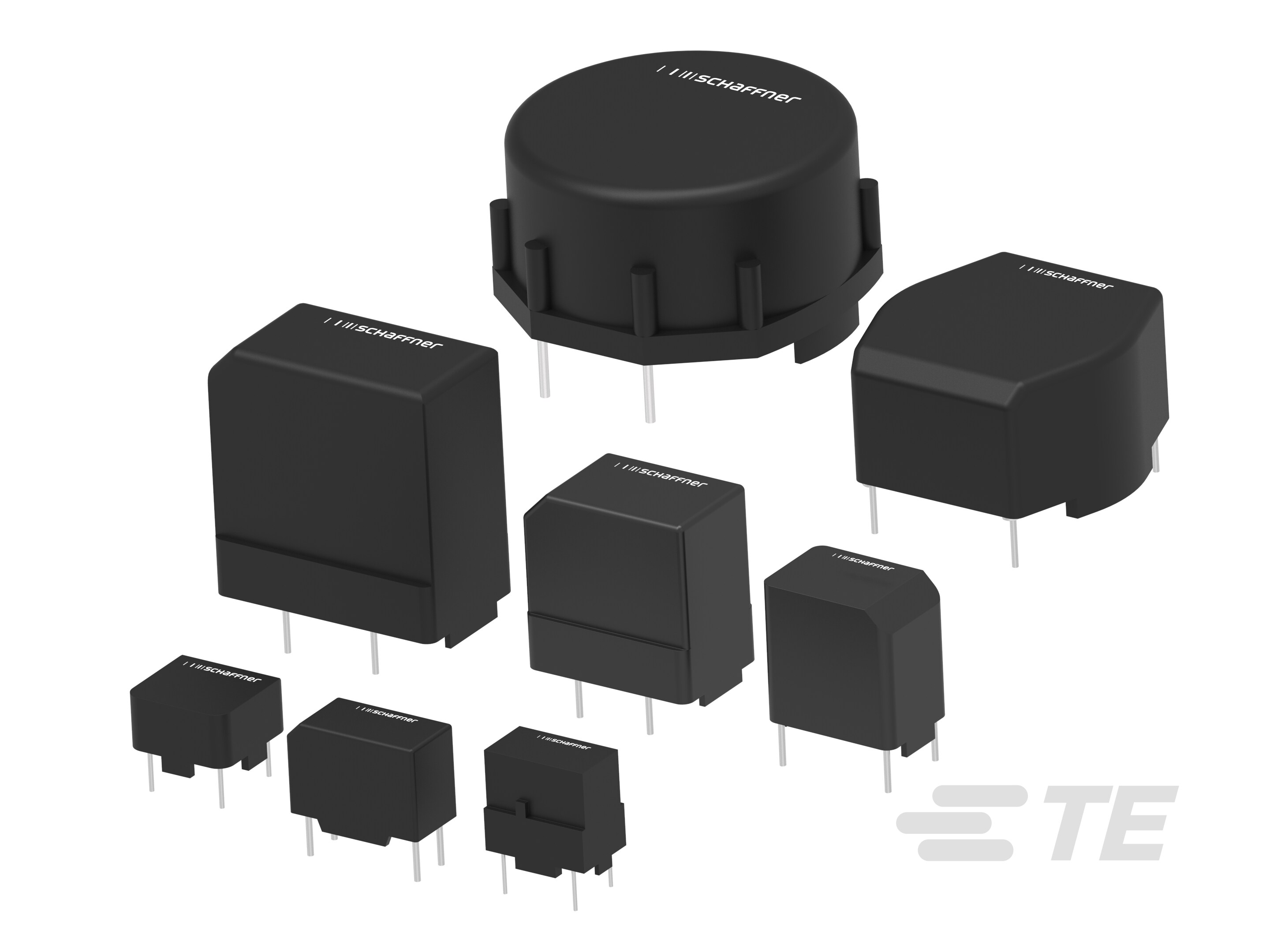

EMC / RFI Chokes RN Series

请查看产品文档或联系我们以了解最新的机构审批信息。

• 输入端接类型  PCB 端子

• 输出端接类型  PCB 端子

• 过压类别  II

• 工作电压（最大值） (VDC) 300

• 额定电流（最大值） (A) .3, .4, .5, .6, .7, .8, .9, 1, 1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 2, 2.2, 2.5, 2.6, 3, 3.6, 4, 6, 8, 10

• 产品重量 (g) 3, 4, 6, 7, 8, 10, 11, 12, 13, 14, 15, 16, 19, 20, 21, 22, 26, 27, 28, 29, 36, 37, 38, 39, 40, 41, 42, 64, 68, 73, 74, 75

• 产品重量 (oz) .106, .141, .212, .247, .282, .35, .39, .42, .458, .49, .53, .56, .67, .71, .74, .78, .92, .95, .99, 1.02, 1.27, 1.3, 1.34, 1.37, 1.41, 1.45, 1.48, 2.26, 2.39, 2.57, 2.61, 2.64

• 产品方向  垂直, 水平

• 产品安装类型  板安装

• 产品宽度 (mm) 14, 15.2, 15.5, 17.1, 18, 18.2, 21.5, 23, 27, 31, 32.5, 41.8

• 产品宽度 (in) .55, .59, .61, .67, .7, .71, .84, .9, 1.06, 1.22, 1.27, 1.64

• 产品长度 (mm) 8.8, 9, 12.5, 14, 15.5, 17.7, 17.9, 18, 22.5, 23, 28, 33.1, 43

• 产品长度 (in) .34, .35, .49, .55, .61, .69, .7, .88, .9, 1.1, 1.3, 1.69

• 产品高度 (mm) 9, 12.6, 13.2, 13.5, 14.3, 16.5, 19.7, 19.8, 20, 25, 29.3, 34.3

• 产品高度 (in) .35, .49, .51, .53, .56, .64, .77, .78, .98, 1.15, 1.35

• 工组温度范围  -40 – 100 °C [ -40 – 212 °F ]

• 冷却方法  自然对流

• 已认证  IEC/EN 60938-1, UL 1283

• 污染度  PD2

• IP 等级  IP00

• UL 阻燃性等级  UL 94V-0
