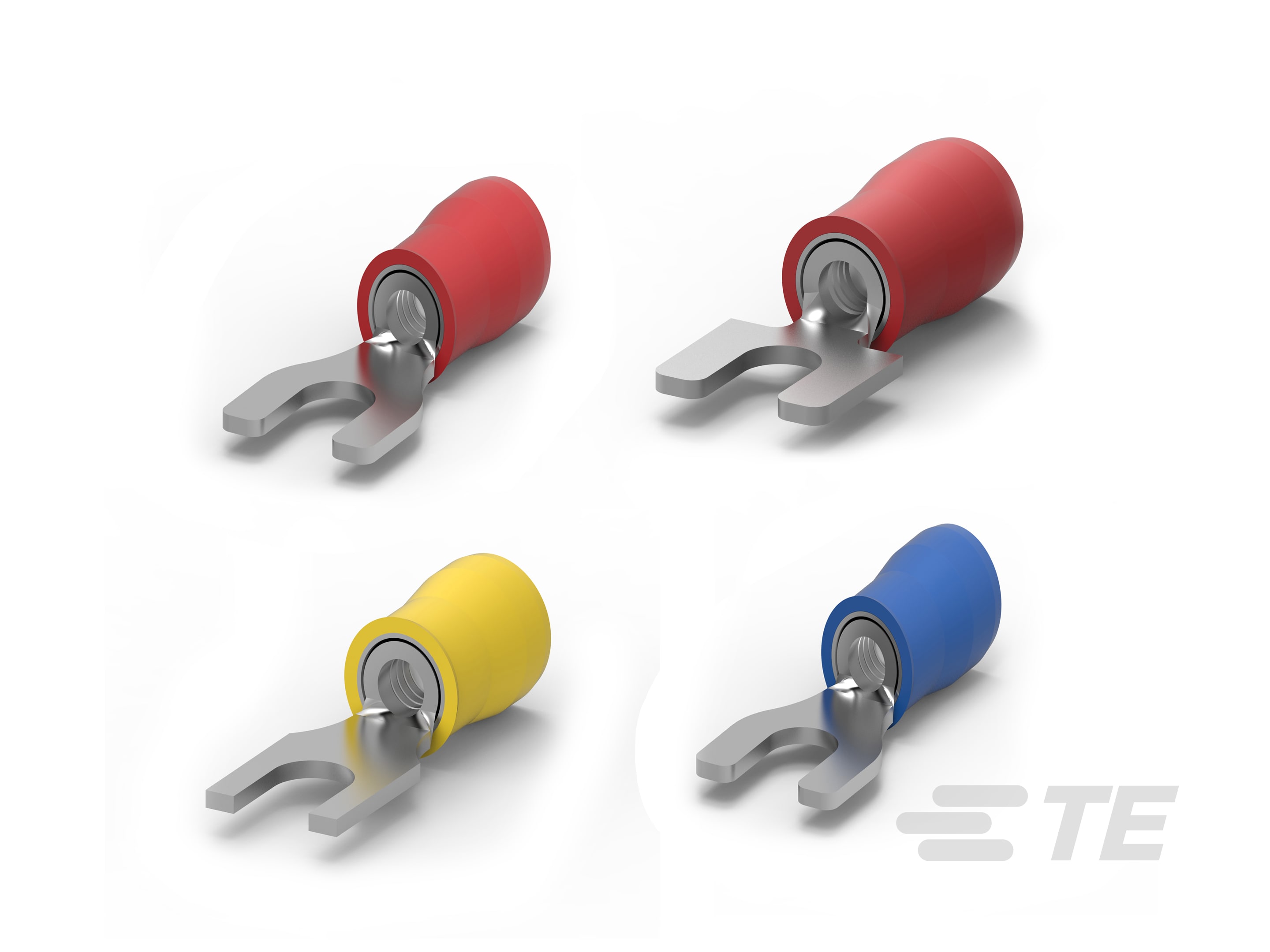

PIDG Spade Tongue Terminals

PIDG

预绝缘 Diamond Grip 叉形舌片端子

产品特性

叉形端子类型 : 叉形舌片端子
线径 (AWG): 16, 22, 12 – 10, 26 – 24, 22 – 16, 16 – 14, 26 – 22
线径 (mm²): 3 – 6, 2.62 – 6.64, .3 – 1.42, 1.04 – 2.62, .12 – .24, 1.04 – 2.68, .26 – 1.65, .326 – 1.31, 1.25 – 2, 2.62 – 6.62, .12 – .4
线径 (CMA): 5180 – 13100, 509 – 3260, 2050 – 5180, 238 – 475, 202 – 810
螺钉尺寸 : 10,

产品	TE 产品编号	文档	线径	线径	线径	螺钉尺寸	螺钉直径	舌厚	产品长度	工组温度范围	电线绝缘支持固定类型	兼容的绝缘直径（最大值）	兼容的绝缘直径范围	封装方法
PIDG SPD 22-16COMM 22-18MIL 10	32051	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#10	4.82 mm	.79 mm	23.06 mm	-	非绝缘支撑	3.56 mm	2.67 – 3.56 mm	零散零件
PIDG SPD 22-16 COMM 22-18MIL 6	326861	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 – 16 AWG	.26 – 1.65 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	19.13 mm	-	绝缘支撑	3.56 mm	2.67 – 3.56 mm	零散零件
PIDG SPD 22-16 COMM 22-18MIL 4	1-327717-2	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 – 16 AWG	.26 – 1.65 mm²	509 – 3260 CMA	#4, M2.5	3.02 mm	.79 mm	17.12 mm	-	绝缘支撑	3.56 mm	2.67 – 3.56 mm	带上安装
TERMINAL,PIDG SPD 16-14 6	2-35559-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	19.13 mm	-	绝缘支撑	4.32 mm	2.92 – 4.31 mm	带上安装
PIDG SPD 22-16COMM 22-18MIL 10	2-32051-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#10	4.82 mm	.79 mm	23.06 mm	-	非绝缘支撑	3.56 mm	2.67 – 3.56 mm	卷带包装
PIDG SPD 22-16COMM 22-18MIL 10	2-32054-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#10	5 mm	.79 mm	23.06 mm	-	绝缘支撑	3.56 mm	2.67 – 3.56 mm	带上安装
TERMINAL,PIDG SPD 16-14 8	2-32056-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.79 mm	23.06 mm	-	绝缘支撑	3.81 mm	2.67 – 3.81 mm	带上安装
TERMINAL,PIDG SPD 16-14 10	2-32060-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	5 mm	.79 mm	23.06 mm	-	绝缘支撑	4.32 mm	2.92 – 4.31 mm	带上安装
TERMINAL,PIDG SPD 16-14 8	2-321233-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.34 mm	.79 mm	19.13 mm	-	绝缘支撑	4.32 mm	2.92 – 4.31 mm	带上安装
TERMINAL,PIDG SPD 12-10 10	2-32589-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#10	5 mm	1.02 mm	18.71 mm	-	非绝缘支撑	5.84 mm	3.81 – 5.84 mm	带上安装
TERMINAL,PIDG SPD 12-10 6	2-326859-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	27.81 mm	-	绝缘支撑	5.84 mm	3.81 – 5.84 mm	带上安装
PIDG SPD 22-16 COMM 22-18MIL 6	2-34541-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	21.48 mm	-	绝缘支撑	3.56 mm	2.67 – 3.56 mm	带上安装
PIDG SPADE	130527	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	M2.5	3.02 mm	.79 mm	20.65 mm	-	绝缘支撑	4.32 mm	2.92 – 4.31 mm	零散零件
PIDG SPADE 16-14	130537	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	M6	6.3 mm	.79 mm	28.01 mm	-	非绝缘支撑	4.32 mm	2.92 – 4.31 mm	零散零件
TERMINAL,PIDG SPD 12-10 6	1-322985-0	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	24.23 mm	-	绝缘支撑	5.84 mm	3.81 – 5.84 mm	带上安装
PIDG SPD 22-16 COMM 22-18MIL 4	1-327717-0	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	#4, M2.5	3.02 mm	.79 mm	17.12 mm	-	绝缘支撑	3.18 mm	2.03 – 3.18 mm	零散零件
TERMINAL,PIDG SPD 16-14 6	1-328281-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	21.49 mm	-	绝缘支撑	4.32 mm	2.92 – 4.31 mm	卷带包装
TERM, PIDG, SPD, 12-10, M6	130625	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	M6	6.35 mm	.79 mm	33 mm	-	非绝缘支撑	6.4 mm	3.8 – 6.4 mm	零散零件
TERMINAL,PIDG SPD 12-10 8	32588	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#8, M4	4.34 mm	1.02 mm	18.71 mm	-	非绝缘支撑	5.84 mm	3.81 – 5.84 mm	零散零件
PIDG SPD 22-16 COMM 22-18MIL 6	2-34080-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.51 mm	.79 mm	19.13 mm	-	绝缘支撑	3.18 mm	2.03 – 3.18 mm	带上安装
TERMINAL,PIDG SPD 12-10 8	2-35152-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	12 – 10 AWG	2.62 – 6.62 mm²	5180 – 13100 CMA	#8, M4	4.34 mm	.79 mm	27.81 mm	-	绝缘支撑	6.35 mm	3.81 – 6.35 mm	带上安装
PIDG SPD 22-16 COMM 22-18MIL 8	2-32053-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.34 mm	.79 mm	23.06 mm	-	绝缘支撑	3.56 mm	2.67 – 3.56 mm	带上安装
TERMINAL,PIDG SPD 12-10 8	2-32588-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#8, M4	4.34 mm	1.02 mm	18.71 mm	-	非绝缘支撑	5.84 mm	3.81 – 5.84 mm	带上安装
TERMINAL,PIDG SPD 22-16 6	2-326861-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 – 16 AWG	1.04 – 2.68 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	19.13 mm	-	绝缘支撑	3.56 mm	2.67 – 3.56 mm	带上安装
TERMINAL,PIDG SPD 12-10 8	35152	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	12 – 10 AWG	2.62 – 6.62 mm²	5180 – 13100 CMA	#8, M4	4.34 mm	1.07 mm	27.81 mm	-	绝缘支撑	6.35 mm	3.81 – 6.35 mm	零散零件
TERMINAL,PIDG SPD 26-24 6	53115-2	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	26 – 24 AWG	.12 – .24 mm²	238 – 475 CMA	#6, M3.5	3.51 mm	.69 mm	16.05 mm	-	绝缘支撑	2.41 mm	1.27 – 2.41 mm	带上安装
TERMINAL,PIDG SPD 16-14 8	32056	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.84 mm	23.06 mm	-	非绝缘支撑	3.81 mm	2.67 – 3.81 mm	零散零件
TERMINAL,PIDG SPD 16-14 10	32057	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	4.82 mm	.84 mm	23.06 mm	-	非绝缘支撑	3.81 mm	2.67 – 3.81 mm	Box
TERMINAL,PIDG SPD 12-10 8	325197	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#8, M4	4.34 mm	.79 mm	33.38 mm	-	绝缘支撑	5.84 mm	3.81 – 5.84 mm	零散零件
TERMINAL,PIDG SPD 16-14 8	325199	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.34 mm	.79 mm	26.26 mm	-	绝缘支撑	4.32 mm	2.92 – 4.31 mm	零散零件
TERMINAL,PIDG SPD 12-10 10	32589	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#10	5 mm	1.02 mm	18.71 mm	-	非绝缘支撑	5.84 mm	3.81 – 5.84 mm	零散零件
TERMINAL,PIDG SPD 12-10 6	326859	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	27.81 mm	-	绝缘支撑	5.84 mm	3.81 – 5.84 mm	零散零件
PIDG SPD 22-16 COMM 22-18MIL 8	8-32053-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.34 mm	.79 mm	23.06 mm	-	非绝缘支撑	3.56 mm	2.67 – 3.56 mm	零散零件
TERMINAL,PIDG SPD 16-14 8	8-32059-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.84 mm	23.06 mm	-	非绝缘支撑	4.32 mm	2.92 – 4.31 mm	零散零件
PIDG SPD 22-16 COMM 22-18MIL 4	8-327717-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	#4, M2.5	3.02 mm	.79 mm	17.12 mm	-	绝缘支撑	3.56 mm	2.67 – 3.56 mm	零散零件
TERMINAL,PIDG SPD 16-14 6	8-35559-1	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	19.13 mm	-	绝缘支撑	4.32 mm	2.92 – 4.31 mm	零散零件
PIDG SPD 22-16COMM 22-18MIL 2	328394	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	#2, M2	2.36 mm	.79 mm	18.47 mm	-	绝缘支撑	3.56 mm	2.67 – 3.56 mm	零散零件
PIDG SPD 22-16 COMM 22-18MIL 8	32050	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.17 mm	.84 mm	23.06 mm	-	非绝缘支撑	3.18 mm	2.03 – 3.18 mm	零散零件
TERMINAL,PIDG SPD 16-14 6	32058	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.51 mm	.84 mm	23.06 mm	-	非绝缘支撑	4.32 mm	2.92 – 4.31 mm	零散零件
TERMINAL,PIDG SPD 16-14 8	32059	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.84 mm	23.06 mm	-	非绝缘支撑	4.32 mm	2.92 – 4.31 mm	零散零件
TERMINAL,PIDG SPD 16-14 6	35559	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	19.13 mm	-	绝缘支撑	4.32 mm	2.92 – 4.31 mm	零散零件
PIDG 26-22 SPADE #4 STUD	321035	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	#4, M2.5	3.02 mm	.5 mm	15.93 mm	-	非绝缘支撑	2.08 mm	1.27 – 2.08 mm	零散零件
TERMINAL,PIDG SPD 16-14 8	321233	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.34 mm	.79 mm	19.13 mm	-40 – 105 °C	非绝缘支撑	4.32 mm	2.92 – 4.31 mm	Box
TERMINAL,PIDG SPD 12-10 6	322985	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	24.23 mm	-	绝缘支撑	5.84 mm	3.81 – 5.84 mm	零散零件
PIDG SPD 22-16 COMM 22-18MIL 4	327717	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	#4, M2.5	3.02 mm	.79 mm	17.12 mm	-	绝缘支撑	3.56 mm	2.67 – 3.56 mm	零散零件
PIDG SPD 22-16 COMM 22-18MIL 6	34080	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.51 mm	.84 mm	19.13 mm	-	非绝缘支撑	3.18 mm	2.03 – 3.18 mm	Box
PIDG SPD 22-16 COMM 22-18MIL 8	32053	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.34 mm	.79 mm	23.06 mm	-	非绝缘支撑	3.56 mm	2.67 – 3.56 mm	零散零件
PIDG SPD 22-16COMM 22-18MIL 10	32054	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#10	5 mm	.79 mm	23.06 mm	-	非绝缘支撑	3.56 mm	2.67 – 3.56 mm	零散零件
TERMINAL,PIDG SPD 16-14 10	32060	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	5 mm	.79 mm	23.06 mm	-	非绝缘支撑	4.32 mm	2.92 – 4.31 mm	零散零件
TERMINAL,PIDG SPD 16-14 6	328281	\u4EA7\u54C1\u56FE\u7EB8 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	21.49 mm	-	绝缘支撑	4.32 mm	2.92 – 4.31 mm	零散零件

规格特性

请查看产品文档或联系我们以了解最新的机构审批信息。

产品类型特性

螺钉尺寸 10,
可密封否
电线绝缘支持固定类型 绝缘支撑, 非绝缘支撑

结构特性

孔数 1

电气特征

额定电压 (V) 300

主体特性

条纹颜色 红色, 蓝色, 黄色
绝缘套管颜色 红色, 蓝色, 黄色
产品重量 (g) .1, .13, .255, .614, .703, .8, .81, .821, .842, .85, .898, .9, .91, .928, .948, .953, .957, .964, .969, .981, 1.029, 1.061, 1.073, 1.102, 1.105, 1.133, 1.236, 2.353, 2.373, 2.401, 2.46, 2.535, 2.916, 3.48, 3.538

接触件特性

叉形端子类型 叉形舌片端子
压线筒类型 Closed
端子方向直式
端子电镀材料锡

机械附件

带导线绝缘带有

尺寸

线径 (AWG) 16, 22, 12 – 10, 26 – 24, 22 – 16, 16 – 14, 26 – 22
线径 (mm²) 3 – 6, 2.62 – 6.64, .3 – 1.42, 1.04 – 2.62, .12 – .24, 1.04 – 2.68, .26 – 1.65, .326 – 1.31, 1.25 – 2, 2.62 – 6.62, .12 – .4
线径 (CMA) 5180 – 13100, 509 – 3260, 2050 – 5180, 238 – 475, 202 – 810
螺钉直径 (mm) 2.36, 3.02, 3.51, 3.68, 4.17, 4.34, 4.82, 5, 6.3, 6.35
螺钉直径 (in) .093, .118, .119, .138, .145, .164, .171, .19, .197, .248
舌厚 (mm) .5, .69, .79, .84, 1.02, 1.07
舌厚 (in) .02, .027, .031, .033, .04, .042
产品长度 (mm) 15.93, 16.05, 17.12, 18.47, 18.71, 19.13, 19.88, 19.89, 20.65, 21.48, 21.49, 23.06, 24.23, 26.26, 27.81, 28.01, 33, 33.38
产品长度 (in) .627, .632, .674, .727, .75, .753, .783, .813, .846, .85, .908, .954, 1.034, 1.095, 1.1, 1.103, 1.299, 1.314
兼容的绝缘直径（最大值） (mm) 2.08, 2.41, 3.18, 3.56, 3.81, 4.32, 5.84, 6.35, 6.4
兼容的绝缘直径（最大值） (in) .082, .095, .125, .14, .15, .17, .23, .25, .252
兼容的绝缘直径范围 (mm) 1.27 – 2.41, 2.67 – 3.56, 1.27 – 2.08, 2.67 – 3.81, 3.8 – 6.4, 3.81 – 6.35, 2.92 – 4.31, 3.81 – 5.84, 2.03 – 3.18
兼容的绝缘直径范围 (in) .05 – .095, .105 – .15, .08 – .125, .149 – .252, .15 – .23, .05 – .082, .15 – .25, .115 – .17, .105 – .14

使用环境

绝缘选项 部分绝缘
工组温度范围 -40 – 105 °C [ -40 – 221 °F ]

操作/应用

与电线基础材料兼容铜
与电线电镀材料兼容锡

行业标准

符合政府资质的端子否

包装特性

封装数量 1, 50, 100, 500, 1000, 2500, 5000
封装方法 Box, Reel, 卷带包装, 带上安装, 零散零件

参考编号

TE 内部编号 CAT-P592-SP118

数据表/目录页

PIDG TERMINALS & SPLICES Quick Reference Guide pdf 英文版本

PIDG Spade Tongue Terminals

产品特性

叉形端子类型 : 叉形舌片端子

线径 (AWG): 16, 22, 12 – 10, 26 – 24, 22 – 16, 16 – 14, 26 – 22

线径 (mm²): 3 – 6, 2.62 – 6.64, .3 – 1.42, 1.04 – 2.62, .12 – .24, 1.04 – 2.68, .26 – 1.65, .326 – 1.31, 1.25 – 2, 2.62 – 6.62, .12 – .4

线径 (CMA): 5180 – 13100, 509 – 3260, 2050 – 5180, 238 – 475, 202 – 810

螺钉尺寸 : 10,

产品类型特性

螺钉尺寸 10,

可密封 否

电线绝缘支持固定类型 绝缘支撑, 非绝缘支撑

结构特性

孔数 1

电气特征

额定电压 (V) 300

主体特性

条纹颜色 红色, 蓝色, 黄色

绝缘套管颜色 红色, 蓝色, 黄色

产品重量 (g) .1, .13, .255, .614, .703, .8, .81, .821, .842, .85, .898, .9, .91, .928, .948, .953, .957, .964, .969, .981, 1.029, 1.061, 1.073, 1.102, 1.105, 1.133, 1.236, 2.353, 2.373, 2.401, 2.46, 2.535, 2.916, 3.48, 3.538

接触件特性

叉形端子类型 叉形舌片端子

压线筒类型 Closed

端子方向 直式

端子电镀材料 锡

机械附件

带导线绝缘 带有

尺寸

线径 (AWG) 16, 22, 12 – 10, 26 – 24, 22 – 16, 16 – 14, 26 – 22

线径 (mm²) 3 – 6, 2.62 – 6.64, .3 – 1.42, 1.04 – 2.62, .12 – .24, 1.04 – 2.68, .26 – 1.65, .326 – 1.31, 1.25 – 2, 2.62 – 6.62, .12 – .4

线径 (CMA) 5180 – 13100, 509 – 3260, 2050 – 5180, 238 – 475, 202 – 810

螺钉直径 (mm) 2.36, 3.02, 3.51, 3.68, 4.17, 4.34, 4.82, 5, 6.3, 6.35

螺钉直径 (in) .093, .118, .119, .138, .145, .164, .171, .19, .197, .248

舌厚 (mm) .5, .69, .79, .84, 1.02, 1.07

舌厚 (in) .02, .027, .031, .033, .04, .042

产品长度 (mm) 15.93, 16.05, 17.12, 18.47, 18.71, 19.13, 19.88, 19.89, 20.65, 21.48, 21.49, 23.06, 24.23, 26.26, 27.81, 28.01, 33, 33.38

产品长度 (in) .627, .632, .674, .727, .75, .753, .783, .813, .846, .85, .908, .954, 1.034, 1.095, 1.1, 1.103, 1.299, 1.314

兼容的绝缘直径（最大值） (mm) 2.08, 2.41, 3.18, 3.56, 3.81, 4.32, 5.84, 6.35, 6.4

兼容的绝缘直径（最大值） (in) .082, .095, .125, .14, .15, .17, .23, .25, .252

兼容的绝缘直径范围 (mm) 1.27 – 2.41, 2.67 – 3.56, 1.27 – 2.08, 2.67 – 3.81, 3.8 – 6.4, 3.81 – 6.35, 2.92 – 4.31, 3.81 – 5.84, 2.03 – 3.18

兼容的绝缘直径范围 (in) .05 – .095, .105 – .15, .08 – .125, .149 – .252, .15 – .23, .05 – .082, .15 – .25, .115 – .17, .105 – .14

使用环境

绝缘选项 部分绝缘

工组温度范围 -40 – 105 °C [ -40 – 221 °F ]

操作/应用

与电线基础材料兼容 铜

与电线电镀材料兼容 锡

行业标准

符合政府资质的端子 否

包装特性

封装数量 1, 50, 100, 500, 1000, 2500, 5000

封装方法 Box, Reel, 卷带包装, 带上安装, 零散零件

参考编号

TE 内部编号 CAT-P592-SP118

数据表/目录页

可密封否

电线绝缘支持固定类型绝缘支撑, 非绝缘支撑

条纹颜色红色, 蓝色, 黄色

绝缘套管颜色红色, 蓝色, 黄色

叉形端子类型叉形舌片端子

端子方向直式

端子电镀材料锡

带导线绝缘带有

绝缘选项部分绝缘

与电线基础材料兼容铜

与电线电镀材料兼容锡

符合政府资质的端子否
