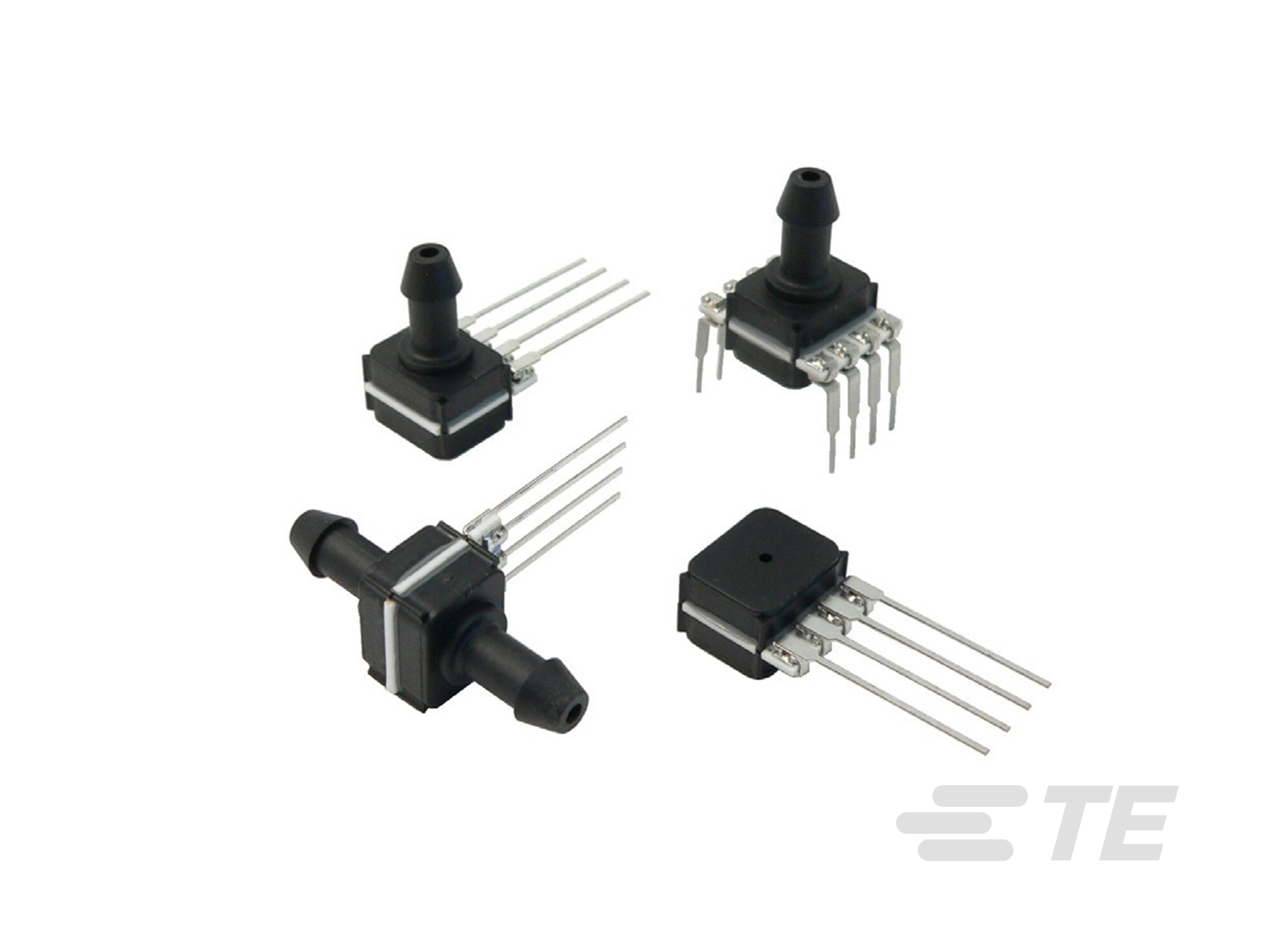

HMI - 放大压力传感器

First Sensor

First Sensor HMI

更多更少

数据手册 |

联系我们

产品特性

压力传感器类型 : 数字压力传感器
压力类型 : 量规
Pressure (mmH2O): 703 | 1020 | 2551 | 10207 | 25518 | 51036 | 70378
Pressure (inH2O): 27.7 | 40.18 | 100.46 | 401.86 | 1004.66 | 2009.3 | 2770.76
压力 (mmHG): 51.7 | 75 | 187.51 | 750.06 | 1875.15 | 3750.3 | 5171.49
耐压范围 : 10 bar | 14 bar | 200 psi | 2 bar | 300 mbar | 30 psi | 5 bar

产品	TE 产品编号	文档	Pressure	压力	耐压范围	压力	电源电压范围	欧盟 RoHS 符合性
HMIB001BZ7H3;PRES;+-1bar;I C;3V;	2003556-F	3D PDF	10207 mmH2O	750.06 mmHG	5 bar	1 bar	2.7 – 4.2 V	-
HMIB010UU1H3; PRES 0...10bar; I C; 3V	2003723-F	3D PDF	10207 mmH2O	750.06 mmHG	14 bar	1 bar	2.7 – 4.2 V	-
HMIB001UU1H5; PRES; 0..1bar; I C; 5V	2003581-F	3D PDF	10207 mmH2O	750.06 mmHG	5 bar	1 bar	4.2 – 5.5 V	-
HMIP100UZ5H5; PRES; 0...100psi; I C; 5V	2003601-F	3D PDF	70378 mmH2O	5171.49 mmHG	200 psi	6.89 bar	4.2 – 5.5 V	-
HMIB2X5UU7H3; PRES 0...2,5bar; I C; 3V	2003663-F	3D PDF	25518 mmH2O	1875.15 mmHG	10 bar	2.5 bar	2.7 – 4.2 V	-
HMIB005UX7H3; PRES 0...5bar; I C; 3V	2003700-F	3D PDF	51036 mmH2O	3750.3 mmHG	14 bar	5 bar	2.7 – 4.2 V	-
HMIB2X5UX7H3; PRES 0...2,5bar; I C; 3V	2003701-F	3D PDF	25518 mmH2O	1875.15 mmHG	10 bar	2.5 bar	2.7 – 4.2 V	-
HMIM250UU1H5; PRES 0...250mbar; I C; 5V	2003747-F	3D PDF	2551 mmH2O	187.51 mmHG	2 bar	.25 bar	4.2 – 5.5 V	-
HMIB005UZ7H5; PRES; 0...5bar; I C; 5V	2003552-F	3D PDF	51036 mmH2O	3750.3 mmHG	14 bar	5 bar	4.2 – 5.5 V	-
HMIM100UU1H5; PRES;0...100mbar; I C; 5V	2003578-F	3D PDF	1020 mmH2O	75 mmHG	300 mbar	.1 bar	4.2 – 5.5 V	-
HMIM250UZ7H5; PRES;0...250mbar; I C; 5V	2003580-F	3D PDF	2551 mmH2O	187.51 mmHG	2 bar	.25 bar	4.2 – 5.5 V	-
HMIM100UU7H3; PRES 0...100mbar; I C; 3V	2003587-F	3D PDF	1020 mmH2O	75 mmHG	300 mbar	.1 bar	2.7 – 4.2 V	-
HMIB2X5UZ5H5; PRES; 0...2,5bar; I C; 5V	2003600-F	3D PDF	25518 mmH2O	1875.15 mmHG	10 bar	2.5 bar	4.2 – 5.5 V	-
HMIB010UW1H3; PRES 0...10bar; I C; 3V	2008791-F	3D PDF	10207 mmH2O	750.06 mmHG	14 bar	1 bar	2.7 – 4.2 V	-
HMIB2X5UX7H5; PRES; 0..2,5bar; I C; 5V	2003551-F	3D PDF	25518 mmH2O	1875.15 mmHG	10 bar	2.5 bar	4.2 – 5.5 V	-
HMIB005UX7H5; PRES; 0..5bar; I C; 5V	2003553-F	3D PDF	51036 mmH2O	3750.3 mmHG	14 bar	5 bar	4.2 – 5.5 V	-
HMIM100BZ5H5; PRES +/-100mbar; I C; 5V	2003727-F	3D PDF	1020 mmH2O	75 mmHG	300 mbar	.1 bar	4.2 – 5.5 V	-
HMIM100UX7H5; PRES;0...100mbar; I C; 5V	2003545-F	3D PDF	1020 mmH2O	75 mmHG	300 mbar	.1 bar	4.2 – 5.5 V	-
HMIM250BU7H5; PRES;+-250mbar; I C; 5V	2003548-F	3D PDF	2551 mmH2O	187.51 mmHG	2 bar	.25 bar	4.2 – 5.5 V	-
HMIB001BU7H5; PRES; +-1bar; I C; 5V	2003550-F	3D PDF	10207 mmH2O	750.06 mmHG	5 bar	1 bar	4.2 – 5.5 V	-
HMIP001UX7H5; PRES; 0...1psi; I C; 5V	2003575-F	3D PDF	703 mmH2O	51.7 mmHG	30 psi	.068 bar	4.2 – 5.5 V	-
HMIB010UU1H5; PRES; 0..10bar; I C; 5V	2003585-F	3D PDF	10207 mmH2O	750.06 mmHG	14 bar	1 bar	4.2 – 5.5 V	-
HMIB001UX7H5; PRES; 0..1bar; I C; 5V	2003549-F	3D PDF	10207 mmH2O	750.06 mmHG	5 bar	1 bar	4.2 – 5.5 V	-
HMIP001BU7H5; PRES; +-1psi; I C; 5V	2003577-F	3D PDF	703 mmH2O	51.7 mmHG	30 psi	.068 bar	4.2 – 5.5 V	-
HMIP001UZ7H5; PRES; 0...1psi; I C; 5V	2003576-F	3D PDF	703 mmH2O	51.7 mmHG	30 psi	.068 bar	4.2 – 5.5 V	-
HMIP100UX7H5; PRES; 0...100psi; I C; 5V	2003584-F	3D PDF	70378 mmH2O	5171.49 mmHG	200 psi	6.89 bar	4.2 – 5.5 V	-
HMIB001UZ7H5; PRES; 0..1bar; I C; 5V	2003582-F	3D PDF	10207 mmH2O	750.06 mmHG	5 bar	1 bar	4.2 – 5.5 V	-
HMIB2X5UZ7H3; PRES; 0...2,5bar; 3V; DIL	2003626-F	3D PDF	25518 mmH2O	1875.15 mmHG	10 bar	2.5 bar	2.7 – 4.2 V	-
HMIM250UX7H3; PRES 0...250mbar; I C; 3V	2003729-F	3D PDF	2551 mmH2O	187.51 mmHG	2 bar	.25 bar	2.7 – 4.2 V	-
HMIB001BZ7H5; PRES +-1bar; I2C; 5V	2003952-F	3D PDF	10207 mmH2O	750.06 mmHG	5 bar	1 bar	4.2 – 5.5 V	-
HMIM100BU7H5; PRES;+-100mbar; I C; 5V	2003546-F	3D PDF	1020 mmH2O	75 mmHG	300 mbar	.1 bar	4.2 – 5.5 V	-
HMIM250UX7H5; PRES;0...250mbar; I C; 5V	2003547-F	3D PDF	2551 mmH2O	187.51 mmHG	2 bar	.25 bar	4.2 – 5.5 V	-
HMIB010UX7H5; PRES; 0..10bar; I C; 5V	2003554-F	3D PDF	10207 mmH2O	750.06 mmHG	14 bar	1 bar	4.2 – 5.5 V	-
HMIM100UZ7H5; PRES;0...100mbar; I C; 5V	2003579-F	3D PDF	1020 mmH2O	75 mmHG	300 mbar	.1 bar	4.2 – 5.5 V	-
HMIB2X5UZ7H5; PRES; 0..2,5bar; I C; 5V	2003583-F	3D PDF	25518 mmH2O	1875.15 mmHG	10 bar	2.5 bar	4.2 – 5.5 V	-
HMIB001BZ5H5; PRES; +-1bar; 4V; 5V	2003726-F	3D PDF	10207 mmH2O	750.06 mmHG	5 bar	1 bar	4.2 – 5.5 V	-
HMIB001UX7H3; PRES; 0...1bar; 3V; I C	2004091-F	3D PDF	10207 mmH2O	750.06 mmHG	5 bar	1 bar	2.7 – 4.2 V	-
HMIB001UU7H5; PRES; 0...1bar; I C; 5V	2003647-F	3D PDF	10207 mmH2O	750.06 mmHG	5 bar	1 bar	4.2 – 5.5 V	-
HMIP100UZ5H3; PRES; 0...100psi; I C; 3V	2010647-F	3D PDF	70378 mmH2O	5171.49 mmHG	200 psi	6.89 bar	2.7 – 4.2 V	-

规格特性

请查看产品文档或联系我们以了解最新的机构审批信息。

产品类型特性

支脚种类通孔
传感器封装 4 针 SIL | 8 针 DIL
压力传感器类型 数字压力传感器
压力类型量规

电气特征

电源电压范围 (V) 2.7 – 4.2 | 4.2 – 5.5

尺寸

产品宽度 9.9 mm [ .389 in ]
产品长度 (mm) 10.5 | 13.4
产品长度 (in) .413 | .527
产品高度 (mm) 6.4 | 12.75 | 15.89 | 22.25 | 22.95 | 25.4
产品高度 (in) .251 | .501 | .625 | .875 | .903 | 1

使用环境

压力 (bar) .068 | .1 | .25 | 1 | 2.5 | 5 | 6.89
压力 (psi) 1 | 1.45 | 3.62 | 14.5 | 72.51 | 100
工组温度范围 -20 – 85 °C [ -4 – 185 °F ]

操作/应用

分辨率 12
输出接口 I²C
Pressure (mmH2O) 703 | 1020 | 2551 | 10207 | 25518 | 51036 | 70378
Pressure (inH2O) 27.7 | 40.18 | 100.46 | 401.86 | 1004.66 | 2009.3 | 2770.76
压力 (mmHG) 51.7 | 75 | 187.51 | 750.06 | 1875.15 | 3750.3 | 5171.49
耐压范围 10 bar | 14 bar | 200 psi | 2 bar | 300 mbar | 30 psi | 5 bar
输出信号类型 12 位 I²C
压力精度 ±.75% FSS（总精确度）

包装特性

传感器端口配置 单侧口 | 单倒钩 | 双对侧口 | 无端口

其他

传感器选件 自定义范围

参考编号

TE 内部编号 CAT-BLPS0090

数据表/目录页

HMI Series - Amplified Pressure Sensors pdf 英文版本
