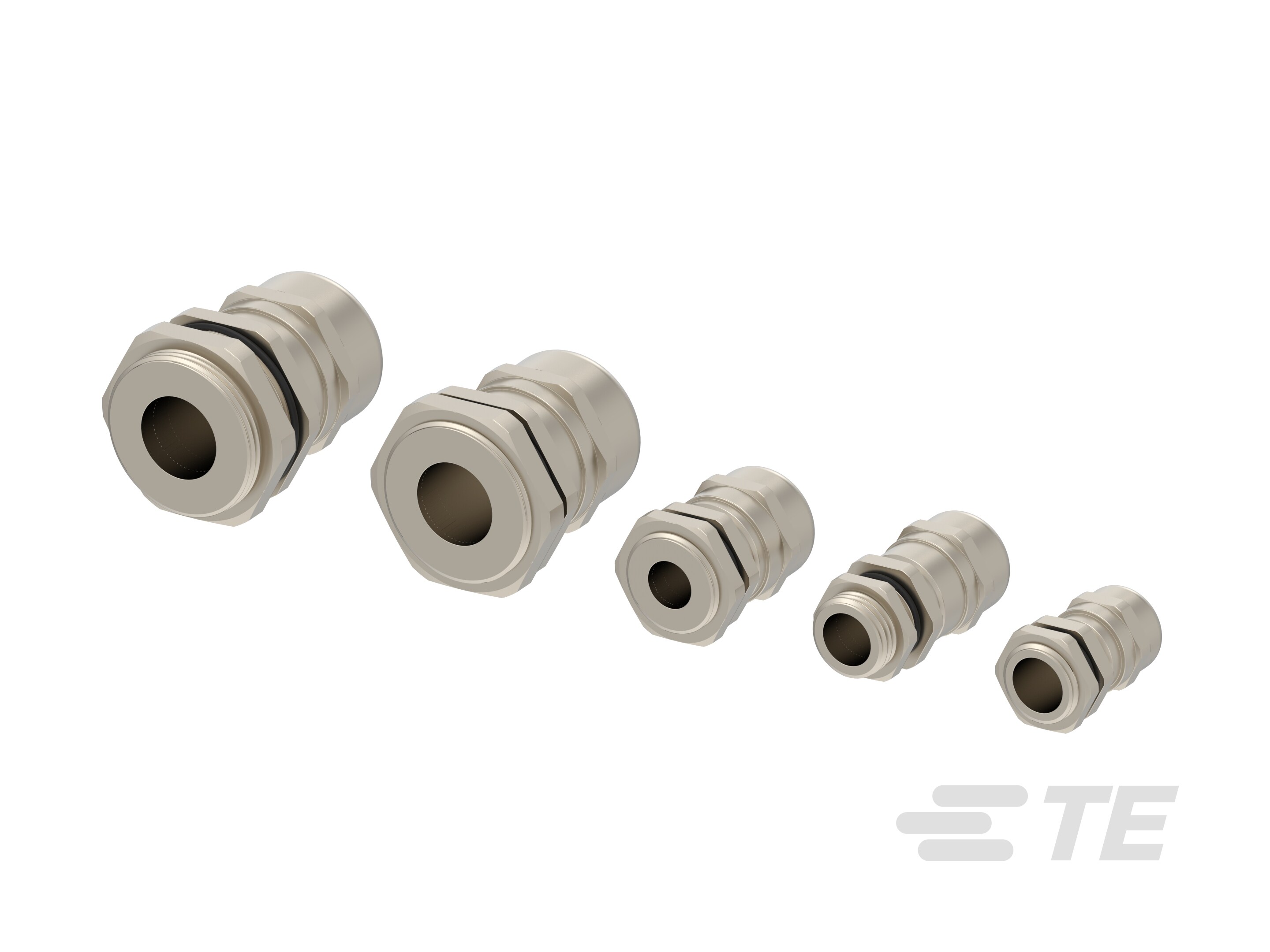

Metal Cable Glands With Locknut (Material Brass)

请查看产品文档或联系我们以了解最新的机构审批信息。

• 电缆密封套产品类型  电缆压盖

• 电缆密封套和附件种类  标准螺纹

• 可密封  是

• 主要产品材料  黄铜

• 主要产品电镀材料  镍

• 夹持直径范围 (mm) 2 – 6, 3 – 7, 4 – 8, 5 – 10, 5 – 9, 6 – 12, 7 – 12, 7 – 13, 9 – 16, 10 – 14, 11 – 17, 12 – 20, 13 – 18, 15 – 21, 16 – 23, 18 – 25, 19 – 28, 22 – 32, 30 – 38, 34 – 44

• 外螺纹尺寸  M16 x 1.5, M20 x 1.5, M25, M25 x 1.5, M32, M32 x 1.5, M40, M40 x 1.5, NPT 1/2", NPT 1", NPT 1 1/2", NPT 1 1/4", NPT 2", NPT 3/4", PG11, PG13.5, PG16, PG21, PG29, PG 9

• 螺纹长度 (mm) 6, 6.5, 7, 7.2, 8, 9, 10, 12, 13, 15, 25.6, 26, 27

• 螺纹长度 (in) .236, .255, .275, .283, .315, .354, .393, .472, .511, 1.007, 1.023, 1.062

• 工组温度范围  -20 – 100 °C [ -4 – 212 °F ]

• UL 阻燃性等级  UL 94V-2

• 外螺纹类型  NPT, PG, 公制

• IP 等级  IP68

• 封装方法  Bag
