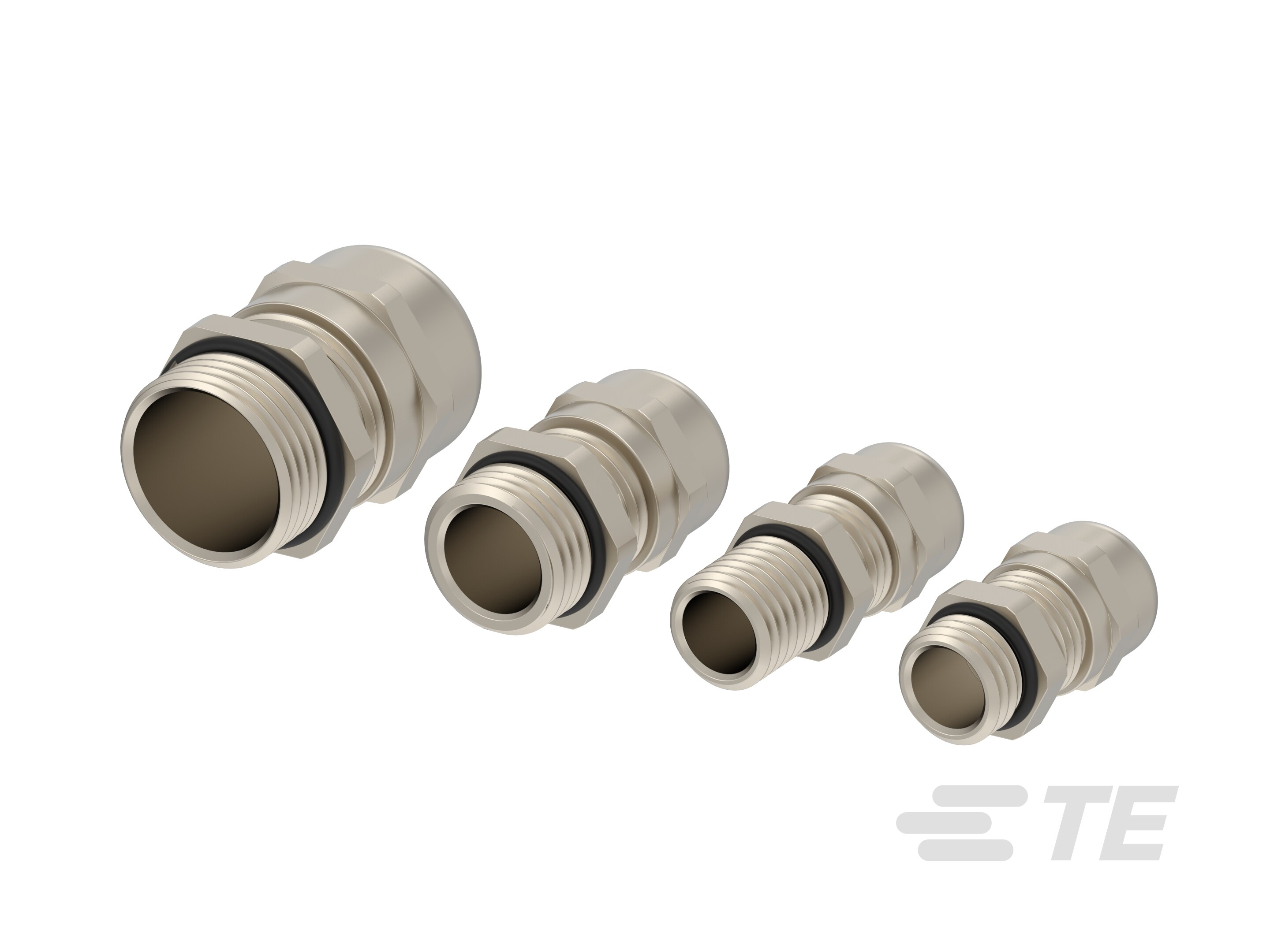

Metal Cable Glands Without Locknut (Material Brass)

请查看产品文档或联系我们以了解最新的机构审批信息。

• 电缆密封套产品类型  电缆压盖

• 电缆密封套和附件种类  标准螺纹

• 可密封  是

• 主要产品材料  黄铜

• 主要产品电镀材料  镍

• 夹持直径范围 (mm) 2 – 5 | 2 – 6 | 3 – 6.5 | 3 – 7 | 4 – 8 | 5 – 10 | 5 – 9 | 6 – 12 | 7 – 12 | 7 – 13 | 9 – 16 | 10 – 14 | 11 – 17 | 12 – 20 | 13 – 18 | 15 – 21 | 16 – 23 | 18 – 25 | 19 – 28 | 20 – 26 | 22 – 32 | 25 – 31 | 27 – 38 | 29 – 35 | 30 – 38 | 34 – 44 | 37 – 53

• 外螺纹尺寸  M12 x 1.5 | M16 x 1.5 | M20 x 1.5 | M25 x 1.5 | M32 | M40 | M50 | M63 | NPT 1/2" | NPT 1" | NPT 1 1/2" | NPT 1 1/4" | NPT 2" | NPT 3/4" | NPT 3/8" | PG11 | PG135 | PG16 | PG21 | PG29 | PG36 | PG42 | PG48 | PG 7 | PG 9

• 螺纹长度 (mm) 6 | 6.5 | 7 | 7.2 | 8 | 9 | 10 | 11.5 | 12 | 13 | 14 | 15 | 16 | 18 | 25.6 | 26 | 27

• 螺纹长度 (in) .236 | .255 | .315 | .354 | .393 | .452 | .472 | .511 | .59 | 1.007 | 1.023 | 1.062

• 工组温度范围  -20 – 100 °C [ -4 – 212 °F ]

• UL 阻燃性等级  UL 94V-2

• 外螺纹类型  NPT | 公制

• IP 等级  IP68

• 封装方法  Bag
