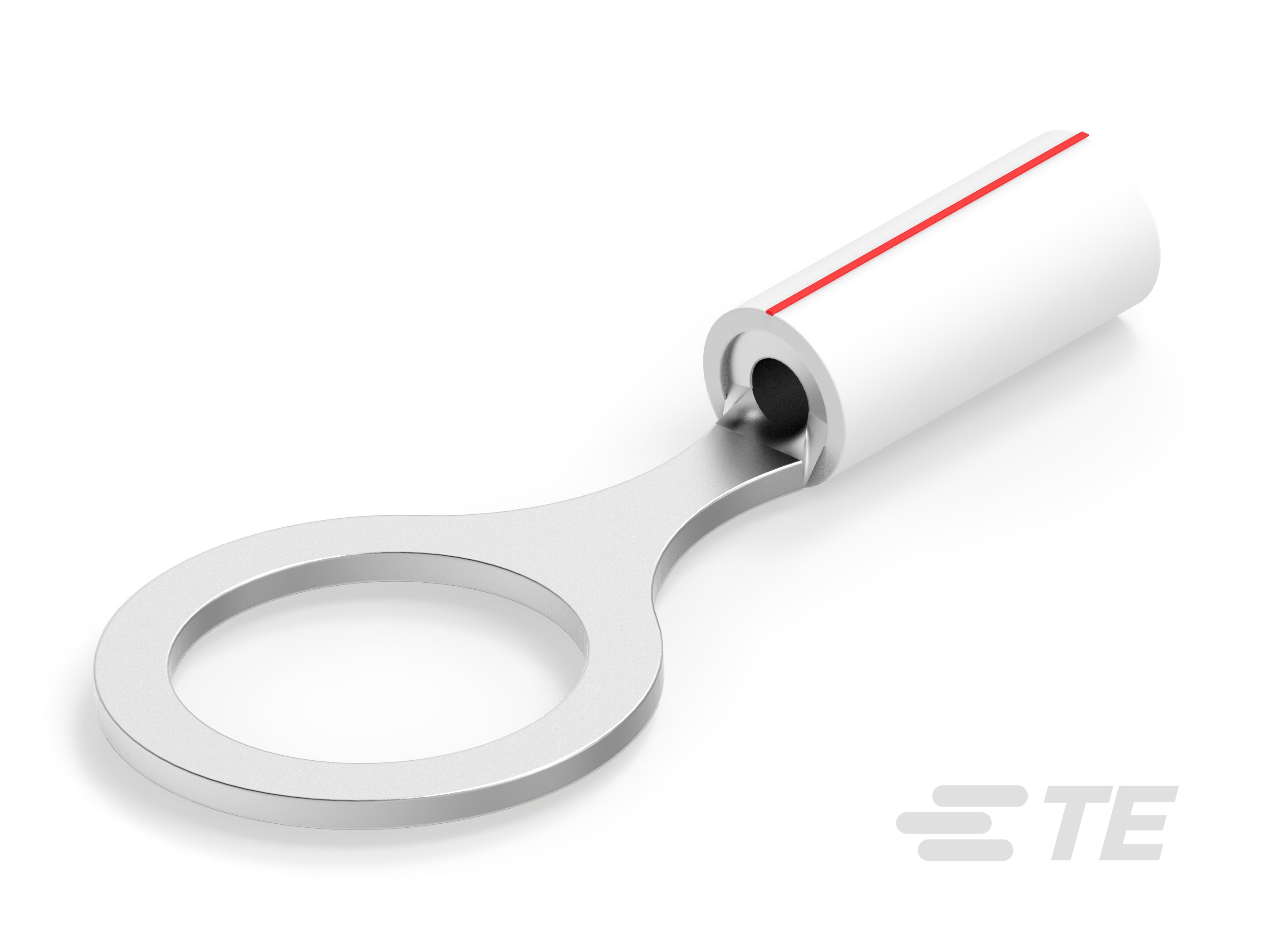

696422-9
Closed Ring Tongue Terminal, 22 – 16 AWG, 3/8 Stud, 9.5 mm [.39 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG
696422-9
Closed Ring Tongue Terminal, 22 – 16 AWG, 3/8 Stud, 9.5 mm [.39 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG
-
- PIDG
- TE 内部编号 696422-9
- TE 内部产品描述 PIDG PVF2 22-16COM22-18MIL 3/8
-
环形端子产品类型 : 闭环舌形端子
-
线径 (AWG): 22 – 16
-
线径 (mm²): .26 – 1.65
-
线径 (CMA): 509 – 3260
-
螺钉尺寸 : 3/8
