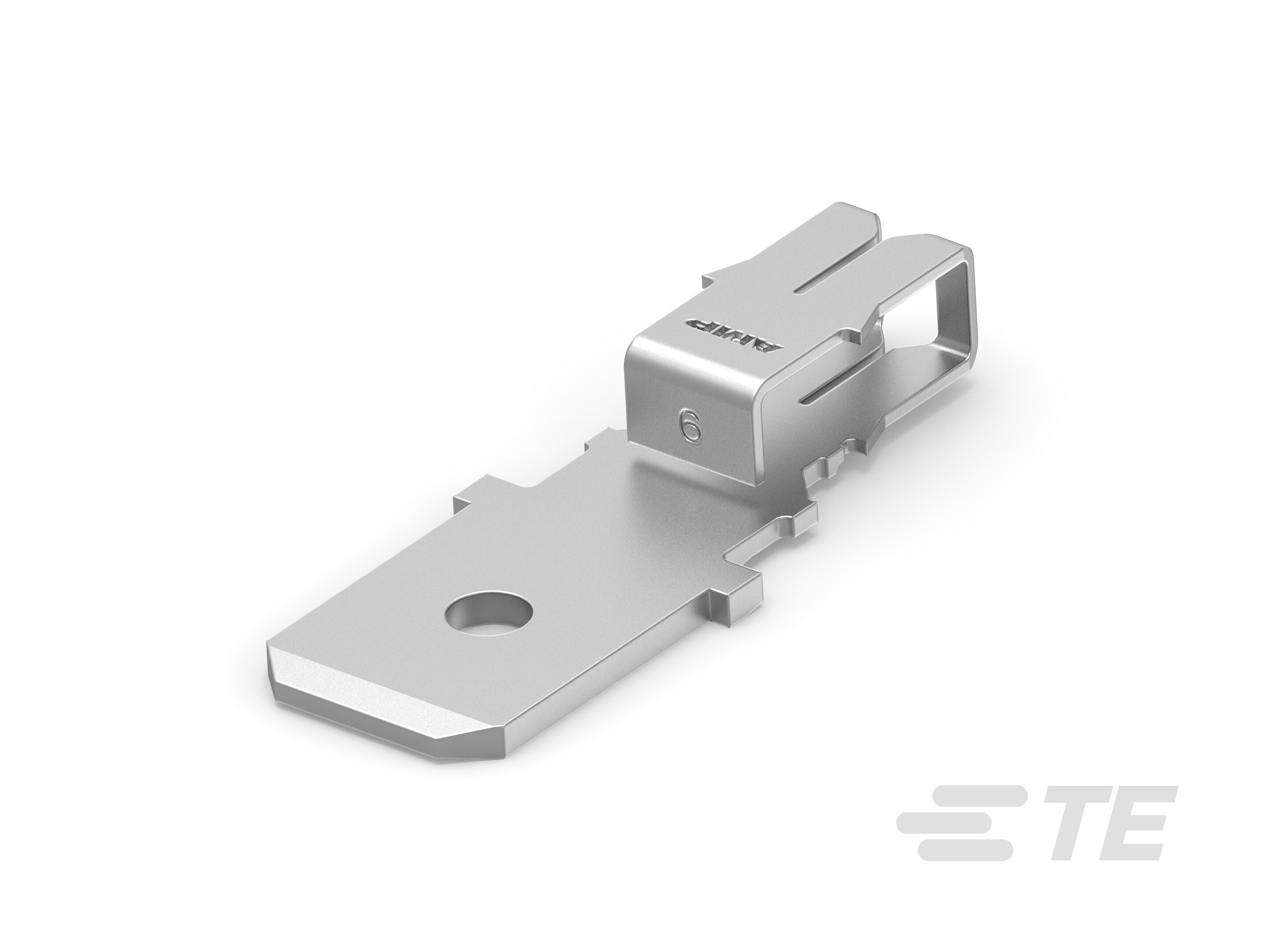

63607-1
Tab Magnet Wire Terminal, 28 – 24 AWG, .32 – .5 mm, Insulation Displacement (IDC), 6.35 mm [.25 in] Tab Width, Tin Plating, MAG-MATE 300
63607-1
Tab Magnet Wire Terminal, 28 – 24 AWG, .32 – .5 mm, Insulation Displacement (IDC), 6.35 mm [.25 in] Tab Width, Tin Plating, MAG-MATE 300
-
- MAG-MATE
- MAG-MATE 300
- TE 内部编号 63607-1
- TE 内部产品描述 MAG MATE 250 FTAB 28-24 TPBR
-
漆包线端子类型 : 公端
-
对接公端宽度 : 6.35 mm [ .25 in ]
-
对接公端厚度 : .8 mm [ .032 in ]
-
与孔位尺寸兼容 : 尺寸 2
-
电磁线尺寸 (mm): .32 – .5
