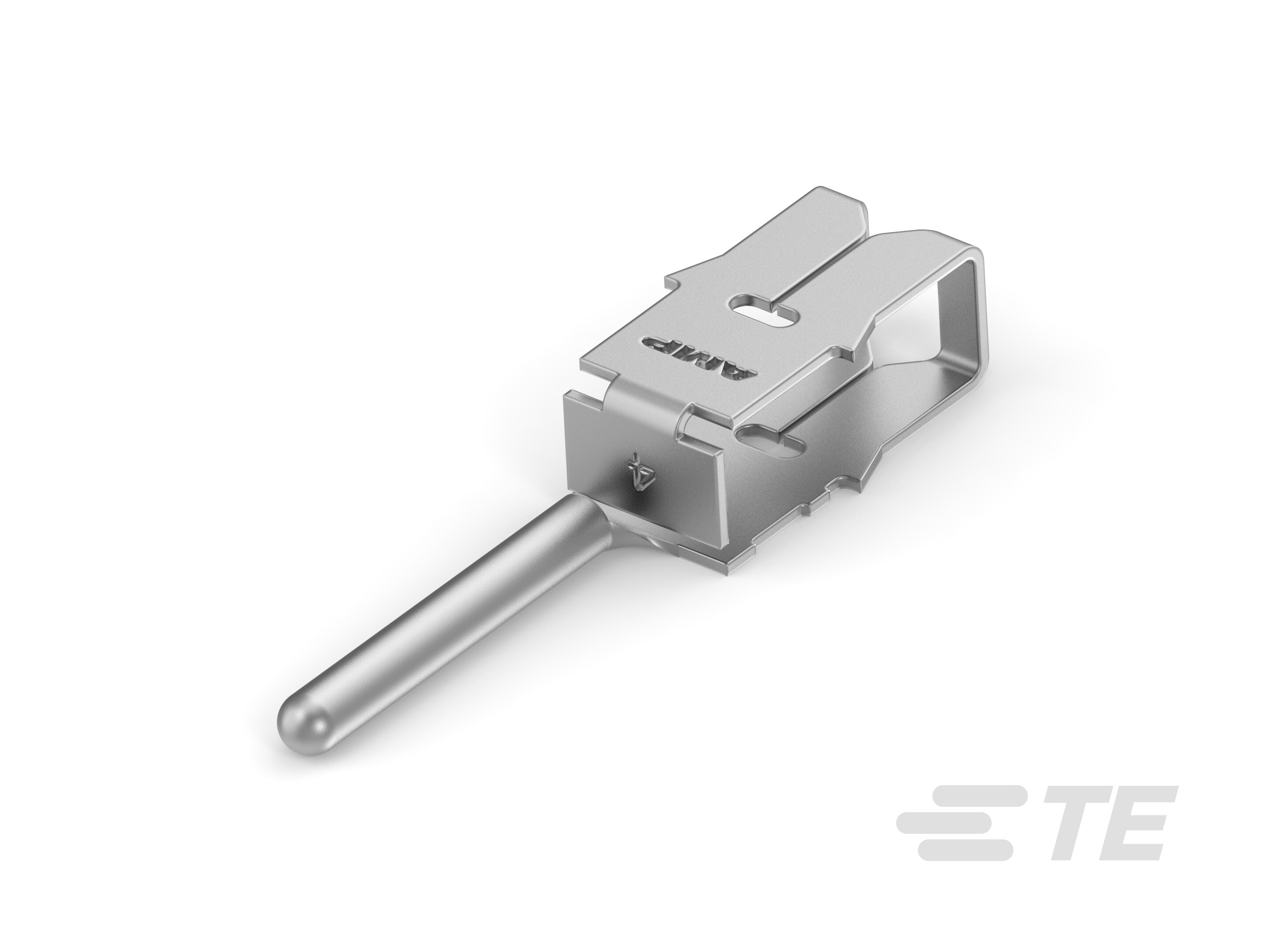

63443-1
Pin Magnet Wire Terminal, 33 – 31 AWG, .18 – .27 mm, Insulation Displacement (IDC), Tin Plating, 16.76 mm [.66 in] Length, MAG-MATE 300
63443-1
Pin Magnet Wire Terminal, 33 – 31 AWG, .18 – .27 mm, Insulation Displacement (IDC), Tin Plating, 16.76 mm [.66 in] Length, MAG-MATE 300
-
- MAG-MATE
- MAG-MATE 300
- TE 内部编号 63443-1
- TE 内部产品描述 MAG-MATE 048 PIN RH 010TPBR
-
漆包线端子类型 : 插针
-
接合插针直径 : 1.22 mm [ .048 in ]
-
与孔位尺寸兼容 : 尺寸 2
-
电磁线尺寸 (mm): .18 – .27
-
电磁线尺寸 (AWG): 33 – 31
