63018-1

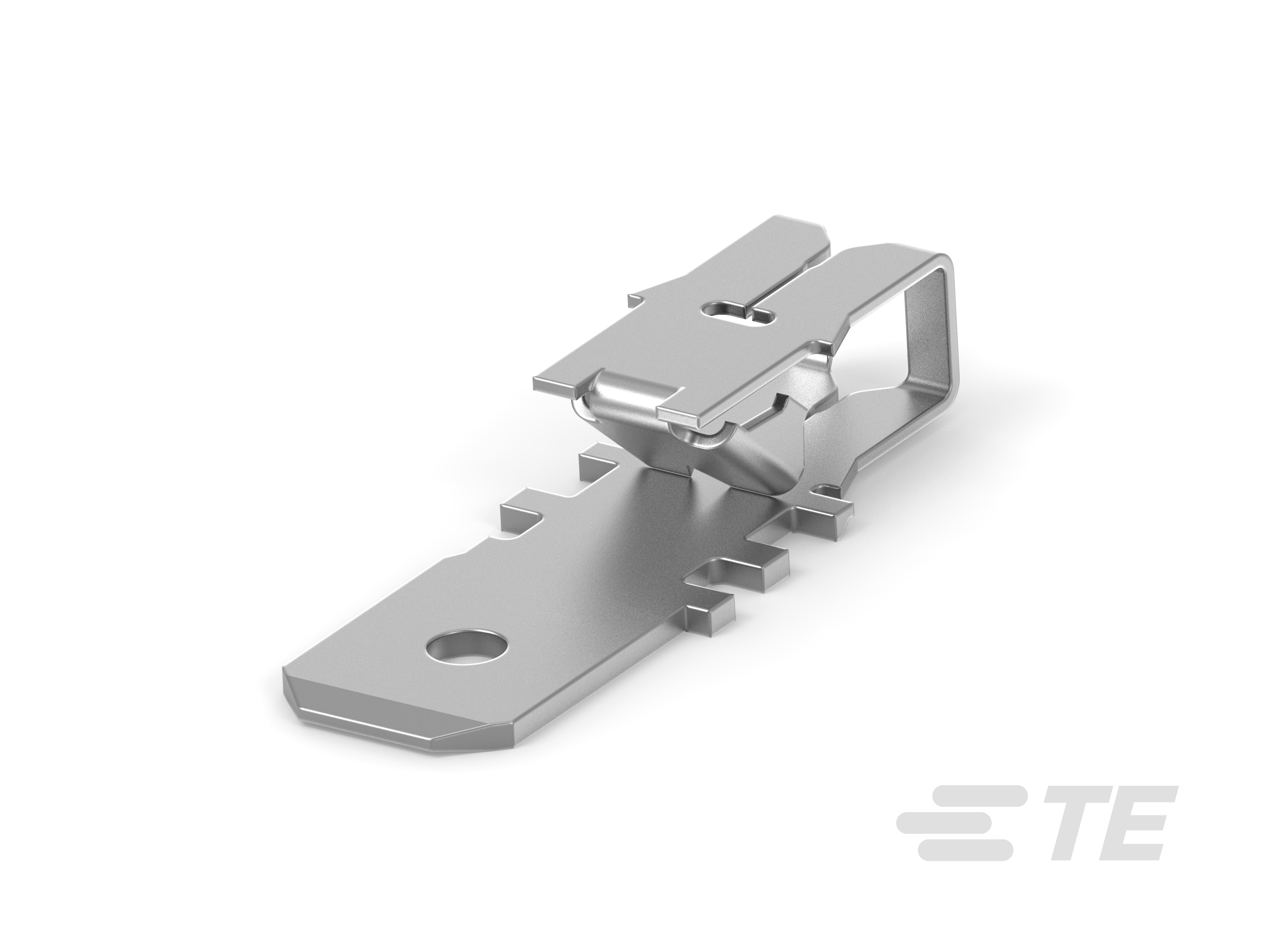

Tab & Poke-In Combo Magnet Wire Terminal, 33 – 31 AWG, .18 – .23 mm, Insulation Displacement (IDC), 4.83 mm [.19 in] Tab Width, MAG-MATE 300
63018-1
Tab & Poke-In Combo Magnet Wire Terminal, 33 – 31 AWG, .18 – .23 mm, Insulation Displacement (IDC), 4.83 mm [.19 in] Tab Width, MAG-MATE 300
-
- MAG-MATE
- MAG-MATE 300
- TE 内部编号 63018-1
- TE 内部产品描述 MAG-MATE W/187 FTAB 33-31 TPBR
-
漆包线端子类型 : 公端和插入式组合
-
对接公端宽度 : 4.83 mm [ .19 in ]
-
对接公端厚度 : .51 mm [ .02 in ]
-
与孔位尺寸兼容 : 尺寸 2
-
引线尺寸 (AWG): 20 – 18
