2213254-1

LED Holders, Citizen CLU036 / Citizen CLU720 / Lextar Nimbus 1500, Does Not Enable Zhaga Compatibility / Not Optic Compatible, LUMAWISE LED Holders

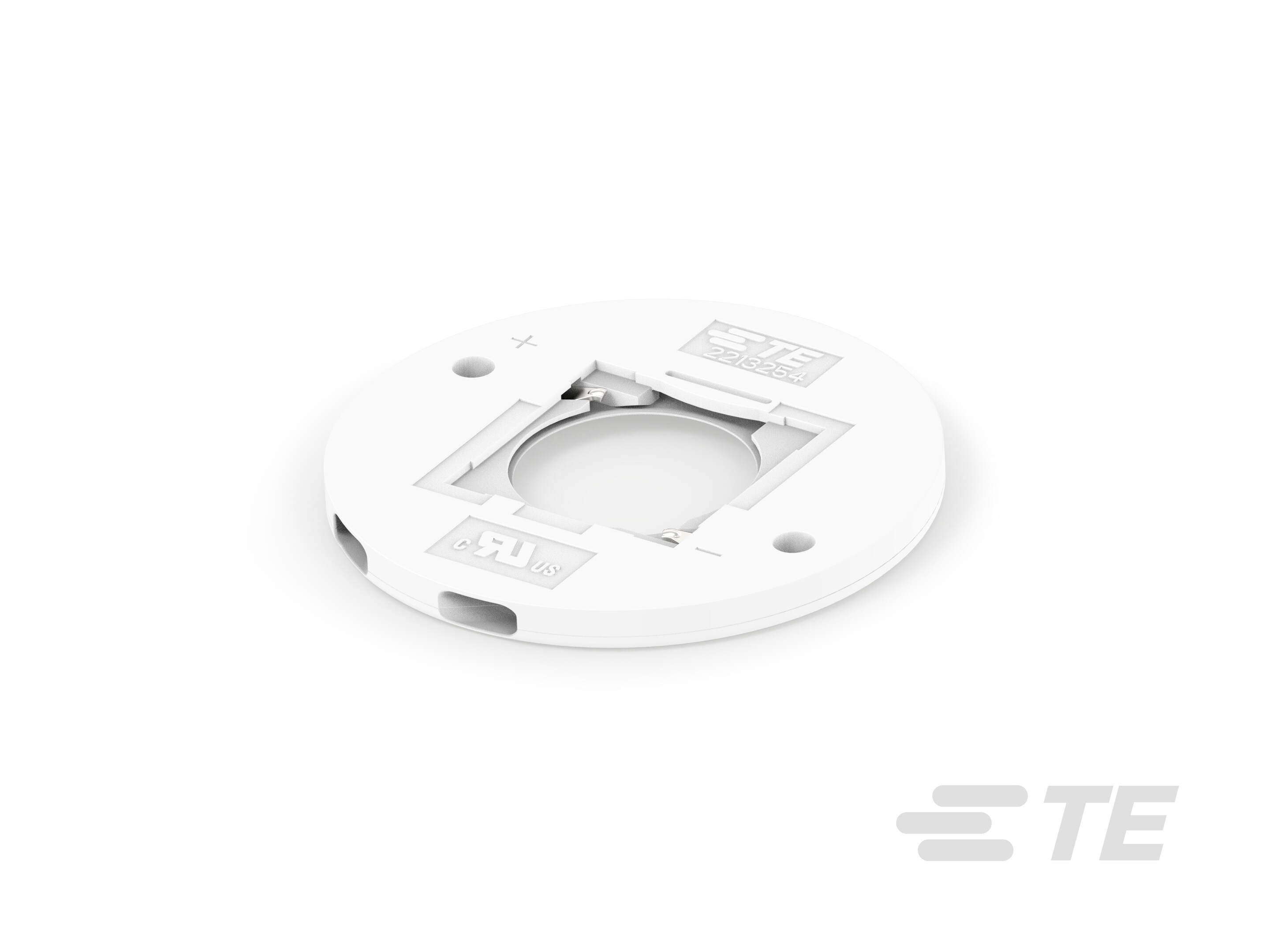

LUMAWISE LED HOLDER Z50 LOW PROFILE 1919-2213254-1

2213254-1

LED Holders, Citizen CLU036 / Citizen CLU720 / Lextar Nimbus 1500, Does Not Enable Zhaga Compatibility / Not Optic Compatible, LUMAWISE LED Holders

    • LUMAWISE
    • LUMAWISE LED Holders

  • 兼容的 LED : Bridgelux V13D Gen 7, Citizen CLL030, Citizen CLL032, Citizen CLL036- 1208C1, Citizen CLL036-1205C1, Citizen CLL036-1206C1, Citizen CLU034, Citizen CLU036, Citizen CLU038-1206C4, Citizen CLU720, Cree CMT 1922, Cree CMT 1925, Cree CMT 1930, Edison Opto 2PHM30XWXXP13001, Everlight EAHP1919, Everlight XUAN1919, Lextar Nimbus 1500, Luminus CGM-14 GEN4, Luminus CHM-11-XH20, Luminus CHM-9-AC00, Luminus CHM-9-XH20/XH30, Luminus CLM-14 GEN 3, Luminus CLM-14 GEN4, Luminus CXM-14 Gen 3, Luminus CXM-14 GEN4, Osram SOLERIQ S13 GEN II, Panasonic C14 (19 x 19), Samsung LC016D, Samsung LC019D, Samsung LC020C, Samsung LC026D, Samsung LC030C, Samsung LC033D, Samsung LC040C, Seoul SBW2FIB, Seoul SBW3FIA, Seoul SDWx3F1C, Seoul SDW02F1C (ZC12), Tridonic SLE-G5-LES15, Tridonic SLE-G6-LES 15, Tridonic SLE-G6-LES 15 SNC/ADV, Tridonic SLE-G6-LES 17, Tridonic SLE-G6-LES 17 SNC/ADV/EXC, Tridonic SLE-G7-LES13, Tridonic SLE-G7-LES15, VOSSLOH-SCHWABE VAS-125, VOSSLOH-SCHWABE VAS-127

  • 包括照明连接器特性 : 不兼容光学仪器, 无法实现 Zhaga 兼容性

  • 工作电压 (VDC): 300

  • 线缆端接方法 : 插入式

  • 连接器系统 : 线到板

查看所有特性
更多 更少

文档

产品图纸

CAD 文件

数据表/目录页

产品规格

机构认证

规格特性

请查看产品文档，或 联系我们 以了解最新的机构审批信息。



请注意：所有产品设计活动都应参照产品图纸。

产品类型特性

  • 连接器系统 : 线到板

  • 连接器和端子端接到 : 电线和电缆

  • COB 基材厚度 (mm): 1

  • LED 底座产品类型 : LED 底座

结构特性

  • 包括照明连接器特性 : 不兼容光学仪器, 无法实现 Zhaga 兼容性

  • 位数 : 1

电气特征

  • 工作电压 (VDC): 300

  • 额定电流（最大值） (A): 5

主体特性

  • 兼容的 LED : Bridgelux V13D Gen 7, Citizen CLL030, Citizen CLL032, Citizen CLL036- 1208C1, Citizen CLL036-1205C1, Citizen CLL036-1206C1, Citizen CLU034, Citizen CLU036, Citizen CLU038-1206C4, Citizen CLU720, Cree CMT 1922, Cree CMT 1925, Cree CMT 1930, Edison Opto 2PHM30XWXXP13001, Everlight EAHP1919, Everlight XUAN1919, Lextar Nimbus 1500, Luminus CGM-14 GEN4, Luminus CHM-11-XH20, Luminus CHM-9-AC00, Luminus CHM-9-XH20/XH30, Luminus CLM-14 GEN 3, Luminus CLM-14 GEN4, Luminus CXM-14 Gen 3, Luminus CXM-14 GEN4, Osram SOLERIQ S13 GEN II, Panasonic C14 (19 x 19), Samsung LC016D, Samsung LC019D, Samsung LC020C, Samsung LC026D, Samsung LC030C, Samsung LC033D, Samsung LC040C, Seoul SBW2FIB, Seoul SBW3FIA, Seoul SDWx3F1C, Seoul SDW02F1C (ZC12), Tridonic SLE-G5-LES15, Tridonic SLE-G6-LES 15, Tridonic SLE-G6-LES 15 SNC/ADV, Tridonic SLE-G6-LES 17, Tridonic SLE-G6-LES 17 SNC/ADV/EXC, Tridonic SLE-G7-LES13, Tridonic SLE-G7-LES15, VOSSLOH-SCHWABE VAS-125, VOSSLOH-SCHWABE VAS-127

接触件特性

  • 端子基材 : 铜合金

  • 端子接触部电镀材料 : 银

  • 端子额定电流（最大值） (A): 5

端接特性

  • 线缆端接方法 : 插入式

机械附件

  • 连接器安装类型 : 板安装

壳体特性

  • 外壳材料 : PBT GF

使用环境

  • 工组温度范围 (°C): -40 – 105
