Raychem ElectroLoss Filterline Cables

Raychem ElectroLoss Filterline 电缆

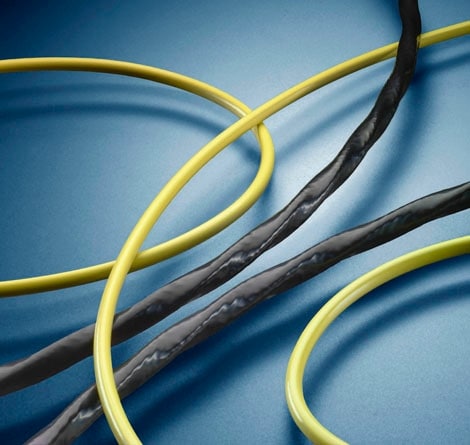

TE's Raychem ElectroLoss FilterLine products include high-performance wire and cable that suppresses conducted and radiated EMI above 100MHz.

适用于军用相互连接的 EMI 保护。 TE 的 Raychem ElectroLoss FilterLine 线缆可提供高度 EMI 保护,同时可作为传统的电气配线使用。它们还满足 SAE AS85485 的性能要求,SAE AS85485 是针对电气相互连接的 EMI 保护而制定的军用规范。

优势

  • 重量轻
  • 尺寸小
  • 易于安装
  • 抑制 100MHz 以上的 EMI

特性

  • 600 伏
  • 温度范围是 -65C 到 200C
  • 55 绝缘规格

应用

Rotary and fixed wing aircraft

Weapons pylons

Sensitive electronic equipment

Protection of electronic systems in missiles

Standards and Specs

SPEC 55F

Electrical performance of AS85485

材料

适用于所有绝缘层的交联改性高性能含氟聚合物

柔性改性导电 ETFE 护套

电气

600 V

超过 100 MHz 的故障安全高频 EMI 保护

插入损耗与导线长度成正比

有了导电护套,无需电气通路或潜行通路就能通过相邻电缆之间的电缆屏蔽中进入受保护的电子器件

物理或其他属性

Resistant to all typical aerospace fluids:

Hydrocarbons

Alcohols

Glycols

Fuels and lubricants

Cleaning fluids

Ketones

Synthetic fuels and lubricants



200 °C rated

<150 ppm fluoride ion evolution



订购信息

低氟化物规格 200˚C 额定导线

AWG Size Conductor Stranding (Number x AWG) Maximum Outside Diameter mm (in) Maximum Weight kg/km (lb/1000 ft) TE Part No.
24 19 x 36 silver coated high strength copper alloy 1.19 [.047] 4.46 [3.0] 55FAF7128-24-*
22 19 x 34 silver coated copper 1.37 [.054] 5.95 [4.0] 55FAF0512-22-*
20 19 x 32 silver coated copper 1.57 [.062] 8.63 [5.8] 55FAF0512-20-*
18 19 x 30 silver coated copper 1.85 [.073] 12.95 [8.7] 55FAF0512-18-*
16 19 x 29 silver coated copper 2.08 [.082] 16.67 [11.2] 55FAF0512-16-*
14 19 x 27 silver coated copper 2.51 [.099] 23.96 [16.1] 55FAF0512-14-*
12 37 x 28 silver coated copper 2.95 [.116] 35.71 [24.0] 55FAF0512-12-*
10 37 x 26 silver coated copper 3.58 [.141] 55.06 [37.0] 55FAF0512-10-*

Electroloss Filterline 线缆轻质加固型结构 —200˚C(扁平编织层)

AWG Size Number of Conductors Shield Size AWG Silver Coated Copper Maximum Outside Diameter mm (in) Maximum Weight kg/km (lb/1000 ft) TE Part No.
24 1 38 2.13 [.084] 10.86 [7.3] 55FBF7129-*
22 1 38 2.31 [.091] 13.09 [8.8] 55FBF2512-22-*
20 1 38 2.51 [.099] 16.67 [11.2] 55FBF2512-20-*
18 1 38 2.79 [.110] 22.17 [14.9] 55FBF2512-18-*
16 1 38 3.02 [.119] 26.78 [18.0] 55FBF2512-16-*
14 1 38 3.45 [.136] 35.86 [24.1] 55FBF2512-14-*
12 1 38 3.89 [.153] 49.40 [33.2] 55FBF2512-12-*
10 1 38 4.55 [.179] 71.57 [48.1] 55FBF2512-10-*
24 2 38 3.33 [.131] 19.34 [13.0] 55FBF7130-*
22 2 38 3.68 [.145] 23.81 [16.0] 55FBF2522-22-*
20 2 38 4.09 [.161] 30.50 [20.5] 55FBF2522-20-*
18 2 38 4.65 [.183] 41.37 [27.8] 55FBF2522-18-*
16 2 38 5.11 [.201] 50.59 [34.0] 55FBF2522-16-*
14 2 38 6.02 [.237] 69.49 [46.7] 55FBF2522-14-*
24 3 38 3.53 [.139] 25.30 [17.0] 55FBF7131-*
22 3 38 3.91 [.154] 31.10 [20.9] 55FBF2532-22-*
20 3 38 4.34 [.171] 41.07 [27.6] 55FBF2532-20-*
18 3 38 4.95 [.195] 56.54 [38.0] 55FBF2532-18-*
16 3 38 5.44 [.214] 69.94 [47.0] 55FBF2532-16-*
14 3 38 6.43 [.253] 96.87 [65.1] 55FBF2532-14-*
24 4 38 4.19 [.165] 31.69 [21.3] 55FBF7132-*
22 4 38 4.67 [.184] 39.58 [26.6] 55FBF2542-22-*
20 4 38 5.23 [.206] 52.68 [35.4] 55FBF2542-20-*
18 4 38 5.99 [.236] 72.91 [49.0] 55FBF2542-18-*
16 4 38 6.68 [.263] 91.36 [61.4] 55FBF2542-16-*
14 4 38 7.85 [.309] 125.59 [84.4] 55FBF2542-14-*
24 5 38 4.52 [.178] 37.80 [25.4] 55FBF7133-*
22 5 38 5.05 [.199] 47.32 [31.8] 55FBF2552-22-*
20 5 38 5.66 [.223] 63.39 [42.6] 55FBF2552-20-*
18 5 38 6.55 [.223] 89.43 [60.1] 55FBF2552-18-*
16 5 38 7.24 [.285] 111.00 [74.6] 55FBF2552-16-*
14 5 38 8.53 [.336] 153.26 [103.0] 55FBF2552-14-*
